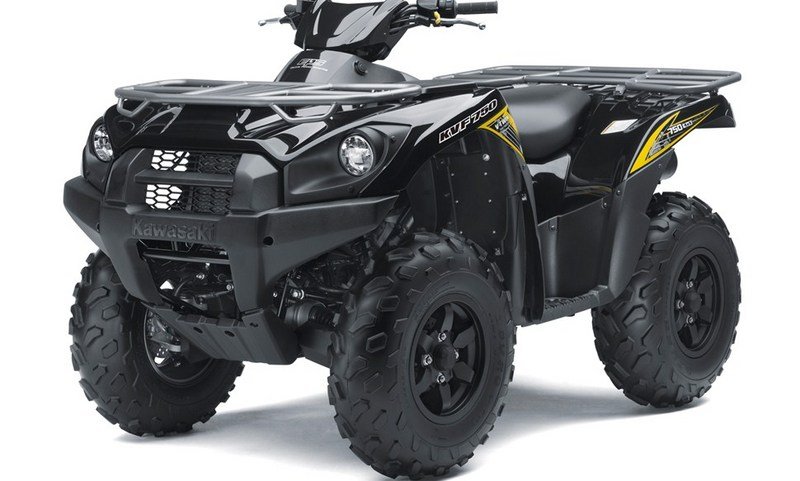

These are the known mechanical and performance specifications for your 2013 Kawasaki KVF750 4x4 EPS.
Basic Specs
Engine
Displacement749.00 ccm (45.70 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke85.0 x 66.0 mm (3.3 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionBattery and Coil (Transistorised ignition)
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox
Final DriveShaft drive (cardan)
Clutch
Driveline2WD / 4WD, shaft
Performance
Horespower49.08 HP (35.8 kW)
Torque59.00 Nm (6.0 kgf-m or 43.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions
Chassis
Frame TypeDouble cradle, high-tensile tubular steel
Rake
Trail
Front SuspensionDouble wishbone with 5-way adjustable spring preload
Front Travel
Rear SuspensionDouble wishbone with 5-way adjustable spring preload
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,220 mm (48.0 inches)
Total Length2,195 mm (86.4 inches)
Total Width1,180 mm (46.5 inches)
Ground Clearance240 mm (9.4 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight
Wet Weight316.0 kg (696.7 pounds)
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc. Discs with 2-piston calipers. Parking brake: Enclosed wet multi-plate.
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesSealed multidisc
Rear Brake Diameter
Wheels
