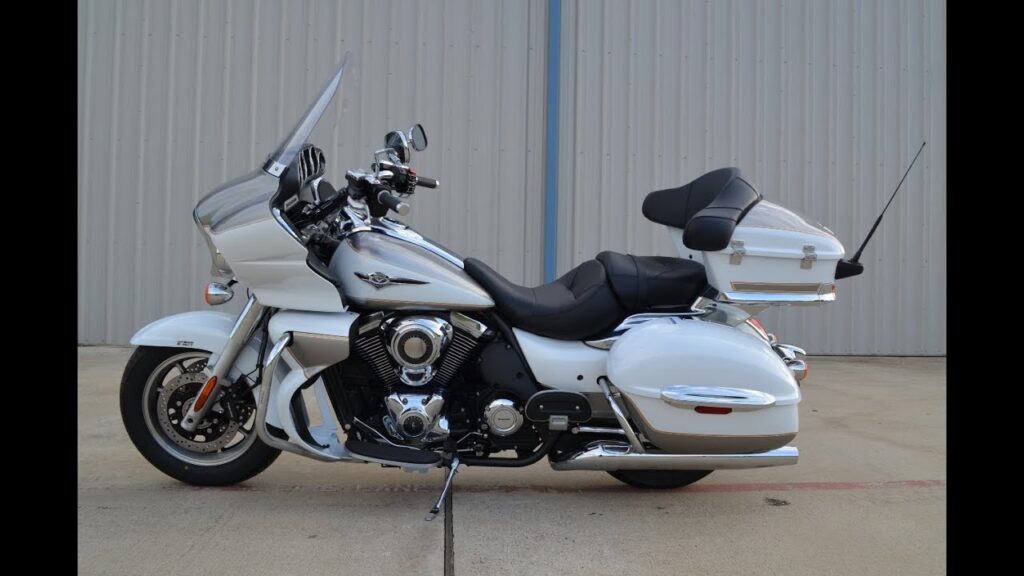

These are the known mechanical and performance specifications for your 2013 Kawasaki Vulcan 1700 Voyager ABS.
Basic Specs


Year2013
MakeKawasaki
ModelKawasaki Vulcan 1700 Voyager ABS
TypeTouring
CostUS$ 19349. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1700.00 ccm (103.73 cubic inches)
Type52° V-twin
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke102.0 x 104.0 mm (4.0 x 4.1 inches)
Valves/Cylinder4
FuelingInjection. DFI with dual 42mm throttle bodies
IgnitionTCBI with Digital Advance
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower
Torque146.45 Nm (14.9 kgf-m or 108.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.06 litres (5.30 gallons)
Emissions
Chassis
Frame TypeSteel, double-cradle with box-section single-tube backbone
Rake30.0°
Trail178 mm (7.0 inches)
Front Suspension45mm hydraulic fork / 5.5 in.
Front Travel
Rear SuspensionSwingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in.
Rear Travel
Seat
Seat Height729 mm (28.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,666 mm (65.6 inches)
Dry Weight
Wet Weight406.0 kg (895.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-16
Rear Tire/Tyre170/70-16
Front BrakesDouble disc. dual four-piston calipers. ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Twin-piston caliper. ABS.
Rear Brake Diameter300 mm (11.8 inches)
Wheels
Comments
Windscreen
