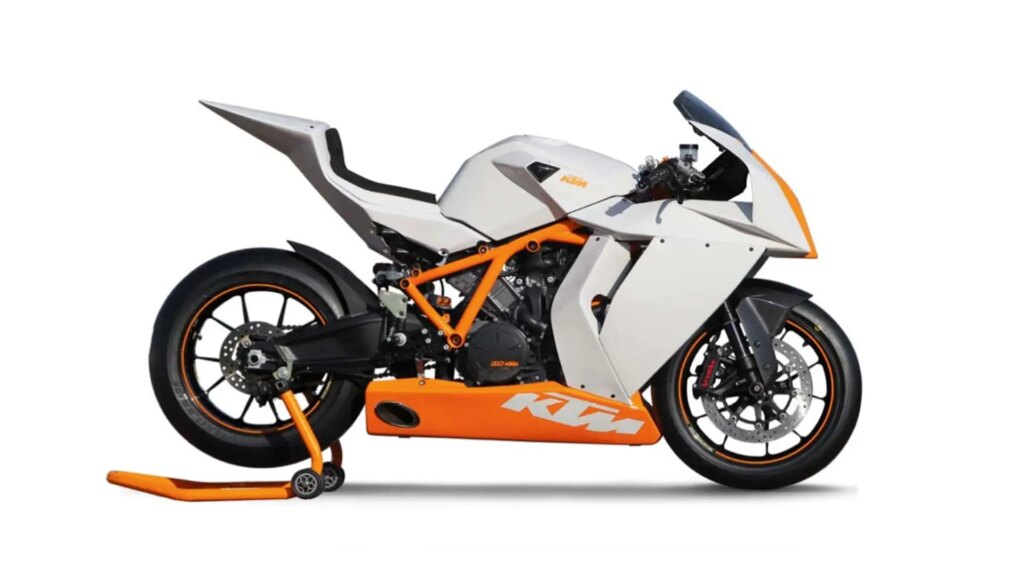

These are the known mechanical and performance specifications for your 2013 KTM 1190 RC8 R Track.
Basic Specs
Engine
Displacement1195.00 ccm (72.92 cubic inches)
Type75° V arrangement
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke105.0 x 69.0 mm (4.1 x 2.7 inches)
Valves/Cylinder
FuelingInjection
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Exhaust
LubricationDry-sump lubrication with 3 rotor pumps
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch / hydraulically operated
Driveline5/8 x 1/4 (520) X Ring. Primary drive: 40:76.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.50 litres (4.36 gallons)
Emissions
Chassis
Frame TypeTubular space frame made from chrome molybdenum steel, powder-coated
Rake23.3°
Trail
Front SuspensionWP Suspension Up Side Down 4354
Front Travel120 mm (4.7 inches)
Rear SuspensionWP Suspension 4618 DACC
Rear Travel120 mm (4.7 inches)
Seat
Seat Height845 mm (33.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance110 mm (4.3 inches)
Wheelbase1,425 mm (56.1 inches)
Dry Weight173.0 kg (381.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesDouble disc. Floating disc. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Two-piston calipers.
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
Limited edition
