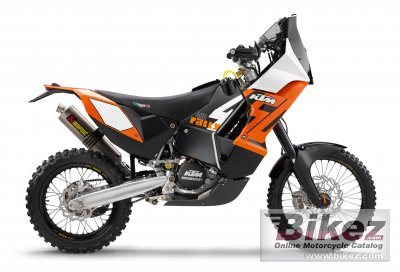

2013 KTM 450 Rally Replica Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 KTM 450 Rally Replica.

Basic Specs

Year2013
MakeKTM
ModelKTM 450 Rally Replica
Cost

Engine

Displacement449.30 ccm (27.42 cubic inches)
TypeRadial cylinder head with DLC coated finger followers
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke95.0 x 63.4 mm (3.7 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. Keihin
IgnitionKeihin EMS
Exhaust Akrapovic Exhaust System
LubricationPressure lubrication with 2 oil pumps
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch, Brembo hydraulics
Driveline14:52 (13:52). Primary ratio 32:76. X-Ring 5/8 x 1/4´.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions

Chassis

Frame TypeCentral double-cradle-type 25CrMo4. Subframe: Aluminium.
Rake26.5°
Trail
Front SuspensionWP-USD
Front Travel300 mm (11.8 inches)
Rear SuspensionWP-PDS shock absorber
Rear Travel335 mm (13.2 inches)
Seat
Seat Height970 mm (38.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance345 mm (13.6 inches)
Wheelbase1,482 mm (58.3 inches)
Dry Weight111.0 kg (244.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels1.60 x 21´´; 2.15 x 18´´ Excel

Comments

It appears you're interested in specifications for the KTM 450 Rally Replica. This Enduro / offroad model is powered by a Radial cylinder head with DLC coated finger followers Single cylinder, four-stroke engine with 449.30 ccm (27.42 cubic inches) of actual displacement before 11.8:1 compression. Fueling is metered via Injection. Keihin allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 450 Rally Replica is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/80-18 . The entire package is supported by the frame, Central double-cradle-type 25CrMo4. Subframe: Aluminium.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 450 Rally Replica was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Racing tuned version.
