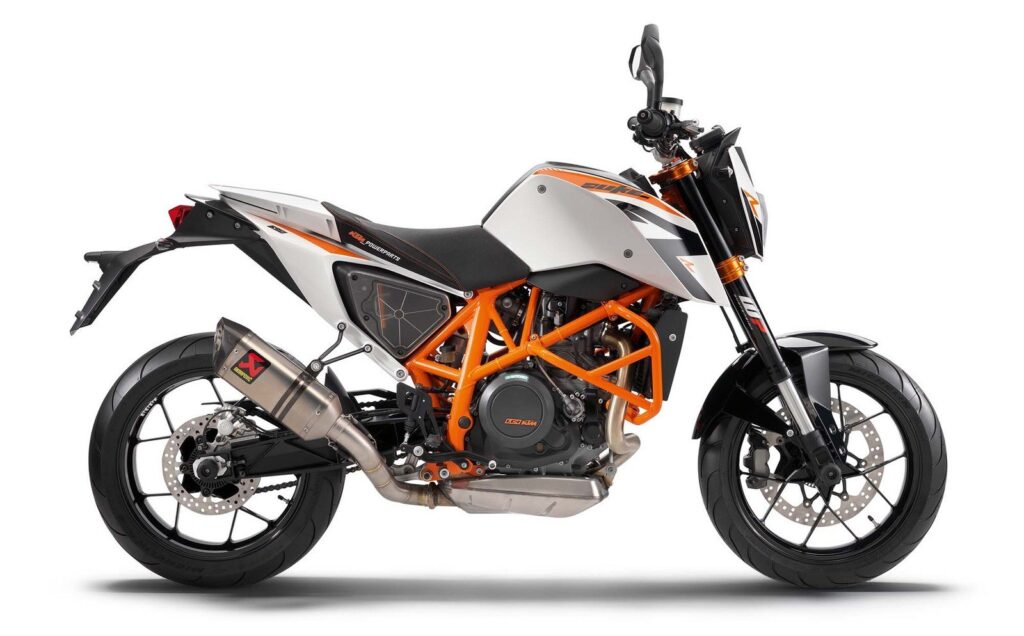

These are the known mechanical and performance specifications for your 2013 KTM 690 Duke R.
Basic Specs

Engine
Displacement690.00 ccm (42.10 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke102.0 x 84.5 mm (4.0 x 3.3 inches)
Valves/Cylinder
FuelingInjection
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Exhaust
LubricationSemi-dry-sump lubrication with 2 rotor pumps
CoolingLiquid
Chassis
Frame TypeTubular space frame made from chrome molybdenum steel, powder-coated
Rake
Trail
Front SuspensionWP
Front Travel190 mm (7.5 inches)
Rear SuspensionWP
Rear Travel190 mm (7.5 inches)
Seat
Seat Height835 mm (32.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance192 mm (7.6 inches)
Wheelbase1,466 mm (57.7 inches)
Dry Weight149.0 kg (328.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Bremo. Floating disc. Four-piston calipers. Radially mounted. Bosch 9M+ ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo. Floating disc. Single-piston caliper. Bosch 9M+ ABS
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Comments
