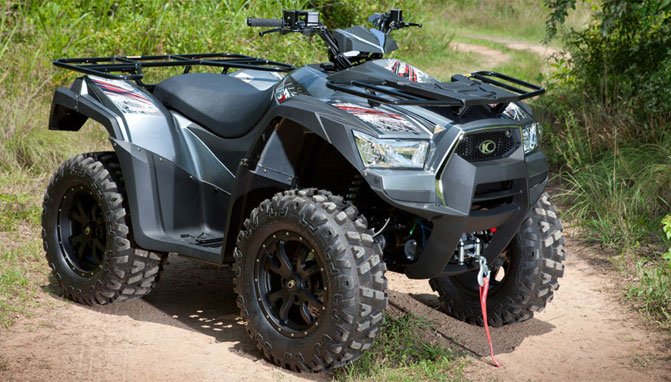

These are the known mechanical and performance specifications for your 2013 Kymco MXU 700i LE.
Basic Specs


Year2013
MakeKymco
ModelKymco MXU 700i LE
TypeATV
CostUS$ 9399. Prices depend on country, taxes, accessories, etc.
Engine
Displacement695.00 ccm (42.41 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke92.0 x 75.0 mm (3.6 x 3.0 inches)
Valves/Cylinder4
FuelingInjection. EFI
Ignition
Exhaust
LubricationWet sump
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
DrivelineCVT Automatic H-L-N-R-P with Differentail Lock
Performance
Horespower45.00 HP (32.8 kW)
Torque40.00 Nm (4.1 kgf-m or 29.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions
Chassis
Frame TypePipe Under Bone
Rake
Trail
Front SuspensionIndependent Dual A-Arm
Front Travel157 mm (6.2 inches)
Rear SuspensionIndependent Dual A-Arm
Rear Travel173 mm (6.8 inches)
Seat
Seat Height890 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,265 mm (49.8 inches)
Total Length2,210 mm (87.0 inches)
Total Width1,219 mm (48.0 inches)
Ground Clearance274 mm (10.8 inches)
Wheelbase1,293 mm (50.9 inches)
Dry Weight305.0 kg (672.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre26/9-14
Rear Tire/Tyre26/11-14
Front BrakesDouble disc. Hydraulic.
Front Brake Diameter
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter
Wheels
Comments
