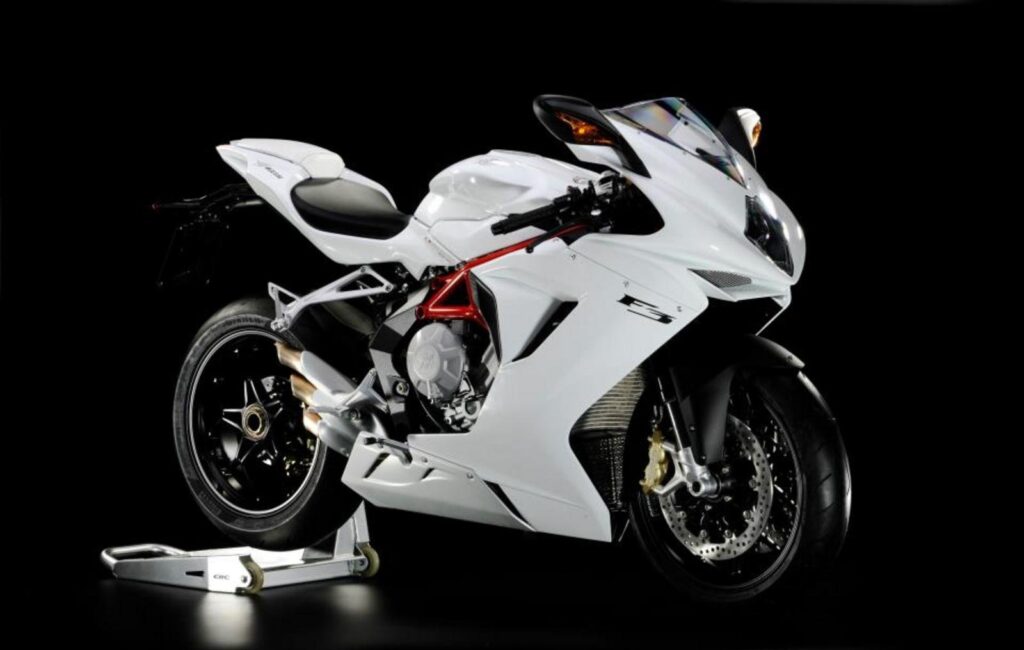

2013 MV Agusta F3 675 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 MV Agusta F3 675.

Basic Specs

Year2013
MakeMV Agusta
ModelMV Agusta F3 675
TypeSport
Cost Euro 11990. Prices depend on country, taxes, accessories, etc.

Engine

Displacement675.00 ccm (41.19 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke79.0 x 45.9 mm (3.1 x 1.8 inches)
Valves/Cylinder4
FuelingInjection
IgnitionDigital CDI
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multi-disc with mechanical drive
Driveline

Performance

Horespower126.00 HP (92.0 kW)
Torque71.00 Nm (7.2 kgf-m or 52.4 ft.lbs)
Top Speed260.0 km/h (161.6 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.50 litres (4.36 gallons)
Emissions

Chassis

Frame TypeALS Steel Tubular Trellis
Rake
Trail99 mm (3.9 inches)
Front SuspensionMarzocchi UPD Telescopic fork
Front Travel125 mm (4.9 inches)
Rear SuspensionSachs adjustable monoshock
Rear Travel123 mm (4.8 inches)
Seat2-person seat
Seat Height812 mm (32.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,060 mm (81.1 inches)
Total Width725 mm (28.5 inches)
Ground Clearance115 mm (4.5 inches)
Wheelbase1,380 mm (54.3 inches)
Dry Weight173.0 kg (381.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsAluminium alloy rims

Comments

It appears you're interested in specifications for the MV Agusta F3 675. This Sport model is powered by a In-line three, four-stroke engine with 675.00 ccm (41.19 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 126.00 HP (92.0 kW) horsepower and 71.00 Nm (7.2 kgf-m or 52.4 ft.lbs) torque. According to our records engine heat of the MV Agusta F3 675 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, ALS Steel Tubular Trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The MV Agusta F3 675 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
