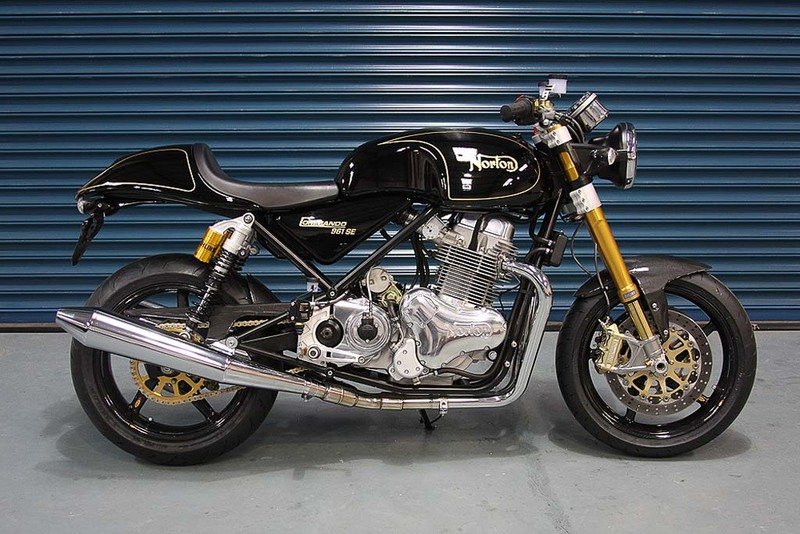

2013 Norton Commando 961 Sport Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Norton Commando 961 Sport.

Basic Specs

Year2013
MakeNorton
ModelNorton Commando 961 Sport
Cost

Engine

Displacement961.00 ccm (58.64 cubic inches)
TypeParallel twin with push-rod valve actuation, 3 bearing crank and balancer shaft.
DetailsTwin, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.0 x 79.0 mm (3.5 x 3.1 inches)
Valves/Cylinder2
FuelingInjection. EFI
IgnitionCrank fired
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet multi-plate hydraulic lifter
DrivelineConstant mesh 5 speed

Performance

Horespower80.00 HP (58.4 kW)
Torque80.00 Nm (8.2 kgf-m or 59.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeSteel tubular with integral oil tank. Swing arm: Twin-sided steel construction.
Rake24.5°
Trail99 mm (3.9 inches)
Front Suspension43mm Öhlins conventional forks - Adjustable preload, compression damping.
Front Travel115 mm (4.5 inches)
Rear SuspensionTwin-sided steel swing arm. Ohlins reservoir-style twin shocks - Adjustable ride height, preload, compression
Rear Travel100 mm (3.9 inches)
Seat
Seat Height813 mm (32.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,420 mm (55.9 inches)
Dry Weight188.0 kg (414.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Brembo system, twin semi-floating hi carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Brembo system, 2 piston “Gold Line” calliper
Rear Brake Diameter220 mm (8.7 inches)
WheelsFront wheel: 36 spoke 3.50 x 17” Chrome Rim. Rear wheel: 40 spoke 5.0 x 17” Chrome Rim

Comments

It appears you're interested in specifications for the Norton Commando 961 Sport. This Classic model is powered by a Parallel twin with push-rod valve actuation, 3 bearing crank and balancer shaft. Twin, four-stroke engine with 961.00 ccm (58.64 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. EFI allowing this machine to produce its 80.00 HP (58.4 kW) horsepower and 80.00 Nm (8.2 kgf-m or 59.0 ft.lbs) torque. According to our records engine heat of the Norton Commando 961 Sport is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Steel tubular with integral oil tank. Swing arm: Twin-sided steel construction.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo system, twin semi-floating hi carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers front brakes and Single disc. Brembo system, 2 piston “Gold Line” calliper rear brakes. The Norton Commando 961 Sport was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
