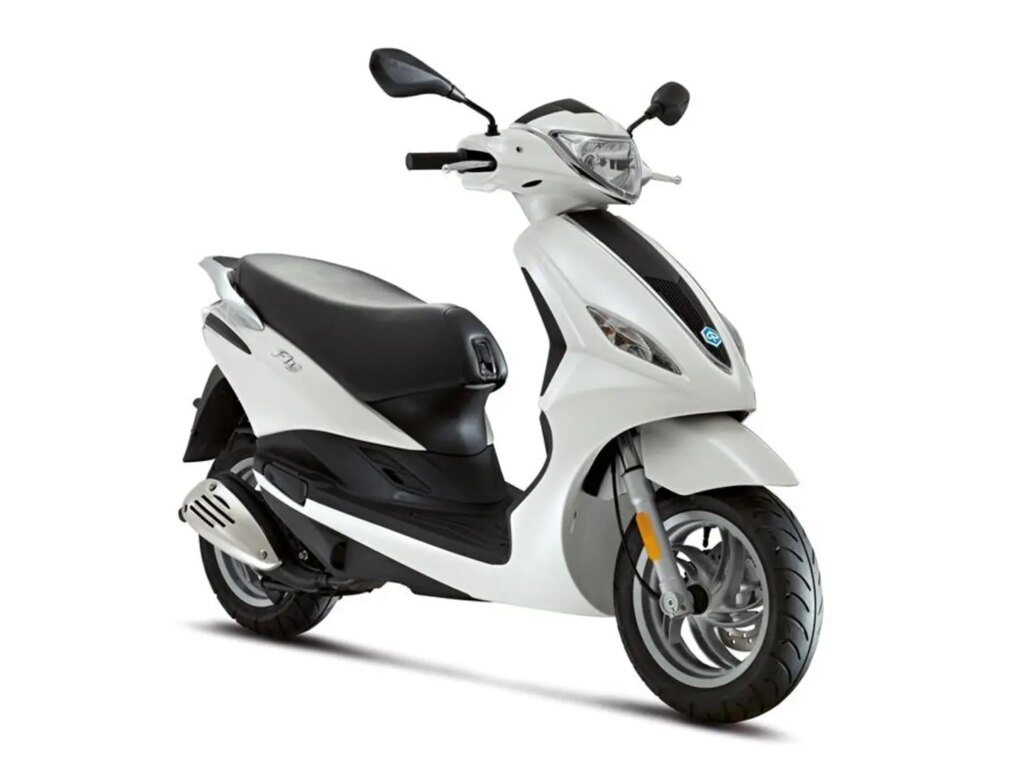

2013 Piaggio Fly 50 4V Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Piaggio Fly 50 4V.

Basic Specs

Year2013
MakePiaggio
ModelPiaggio Fly 50 4V
CostUS$ 2199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement49.90 ccm (3.04 cubic inches)
TypePiaggio HI-PER4 engine
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke39.0 x 41.8 mm (1.5 x 1.6 inches)
Valves/Cylinder4
FuelingCarburettor
IgnitionElectronic
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower11.40 HP (8.3 kW)
Torque3.50 Nm (0.4 kgf-m or 2.6 ft.lbs)
Top Speed62.8 km/h (39.0 mph)

Fuel Economy & Polution

Fuel Consumption2.08 litres/100 km (48.1 km/l or 113.09 mpg)
Fuel Capacity7.10 litres (1.88 gallons)
Emissions48.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTube type
Rake
Trail
Front SuspensionTelescopic hydraulic fork
Front Travel
Rear SuspensionHydraulic single shock absorber
Rear Travel
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,880 mm (74.0 inches)
Total Width734 mm (28.9 inches)
Ground Clearance
Wheelbase1,331 mm (52.4 inches)
Dry Weight100.0 kg (220.5 pounds)
Wet Weight107.0 kg (235.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-12
Rear Tire/Tyre120/70-12
Front BrakesSingle disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter140 mm (5.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Piaggio Fly 50 4V. This Scooter model is powered by a Piaggio HI-PER4 engine Single cylinder, four-stroke engine with 49.90 ccm (3.04 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its 11.40 HP (8.3 kW) horsepower and 3.50 Nm (0.4 kgf-m or 2.6 ft.lbs) torque. According to our records engine heat of the Piaggio Fly 50 4V is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 120/70-12 . The entire package is supported by the frame, Tube type. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Piaggio Fly 50 4V was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
