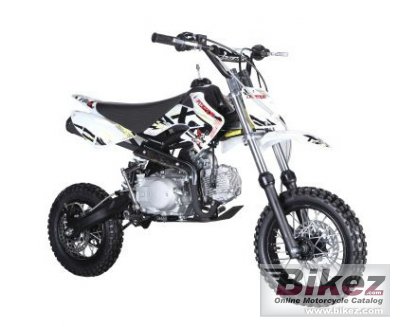

2013 Pitster Pro X2 120 10x12 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Pitster Pro X2 120 10x12.

Basic Specs

Year2013
MakePitster Pro
ModelPitster Pro X2 120 10x12
CostUS$ 1499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement120.00 ccm (7.32 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke56.0 x 57.0 mm (2.2 x 2.2 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionStator/ CDI with lighting coil
ExhaustFMF and Pro Circuit
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchFour plate wet clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.00 litres (0.79 gallons)
Emissions

Chassis

Frame TypeChromoly frame with engine cradle. Subframe: Chromoly Removable.
Rake
Trail
Front SuspensionConventional Telescoping Fork
Front Travel
Rear SuspensionType A Swing Arm
Rear Travel
Seat
Seat Height737 mm (29.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance203 mm (8.0 inches)
Wheelbase1,118 mm (44.0 inches)
Dry Weight60.8 kg (134.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.75-12
Rear Tire/Tyre3.00-10
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Pitster Pro X2 120 10x12. This Minibike, cross model is powered by a Single cylinder, four-stroke engine with 120.00 ccm (7.32 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Pitster Pro X2 120 10x12 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.75-12 and the rear is 3.00-10 . The entire package is supported by the frame, Chromoly frame with engine cradle. Subframe: Chromoly Removable.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Pitster Pro X2 120 10x12 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
