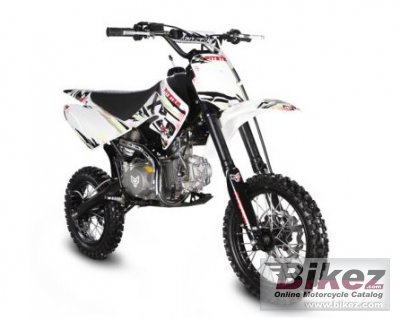

These are the known mechanical and performance specifications for your 2013 Pitster Pro X5 155.
Basic Specs


Year2013
MakePitster Pro
ModelPitster Pro X5 155
TypeMinibike, cross
CostUS$ 1899. Prices depend on country, taxes, accessories, etc.
Engine
Displacement140.00 ccm (8.54 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke56.0 x 57.0 mm (2.2 x 2.2 inches)
Valves/Cylinder
Fueling
IgnitionOuter Rotor w/ CDI
ExhaustFMF and Pro Circuit
Lubrication
CoolingOil & air
Drivetrain
Gearbox4-speed
Final DriveChain
ClutchFive plate wet clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity4.92 litres (1.30 gallons)
Emissions
Chassis
Frame TypeChromoly frame with engine cradle. Subframe: Chromoly Removable.
Rake
Trail
Front Suspension35mm inverted forks
Front Travel
Rear SuspensionMono Shock with preload adjustmen
Rear Travel
Seat
Seat Height787 mm (31.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance254 mm (10.0 inches)
Wheelbase1,181 mm (46.5 inches)
Dry Weight64.9 kg (143.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.50-14
Rear Tire/Tyre80/100-12
Front BrakesSingle disc. Hydraulic.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter190 mm (7.5 inches)
Wheels
Comments
