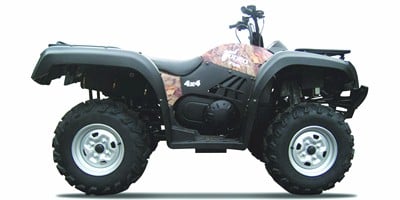

These are the known mechanical and performance specifications for your 2013 Qlink Rodeo 500.
Basic Specs
Year2013
MakeQlink
ModelQlink Rodeo 500
TypeATV
CostUS$ 5299. Prices depend on country, taxes, accessories, etc.
Engine
Displacement471.00 ccm (28.74 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke84.5 x 84.0 mm (3.3 x 3.3 inches)
Valves/Cylinder
FuelingCarburettor. PD33J-A
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
Driveline4WD and differential lock
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.65 litres (4.40 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent Double A-Arm
Front Travel
Rear SuspensionIndependent Double A-Arm
Rear Travel
Seat
Seat Height861 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,214 mm (47.8 inches)
Total Length2,230 mm (87.8 inches)
Total Width1,120 mm (44.1 inches)
Ground Clearance257 mm (10.1 inches)
Wheelbase
Dry Weight327.5 kg (722.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
2WD/4WD. Automatic CVT with L-H-N-R-P. Winch.
