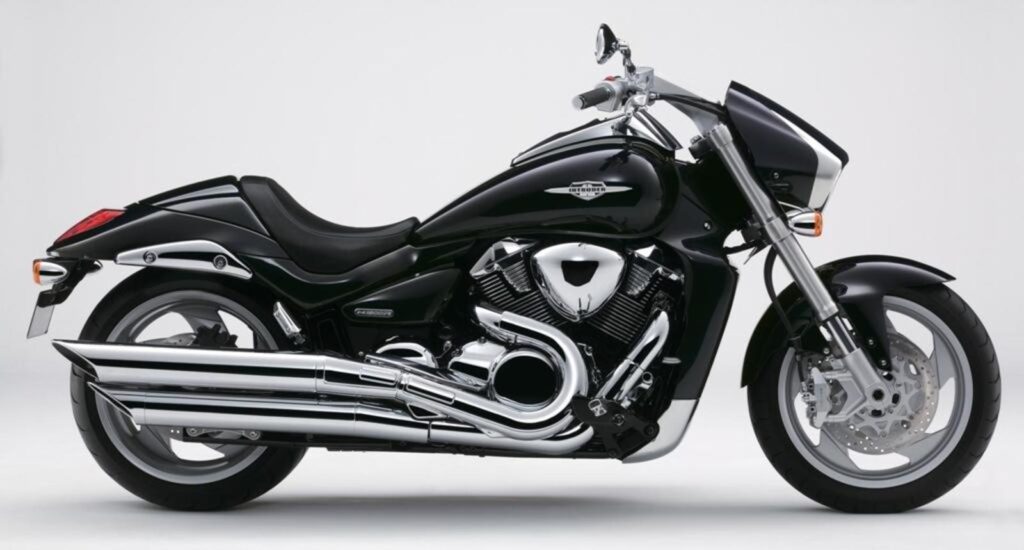

2013 Suzuki Intruder M1500 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Suzuki Intruder M1500.

Basic Specs

Year2013
MakeSuzuki
ModelSuzuki Intruder M1500
Cost

Engine

Displacement1462.00 ccm (89.21 cubic inches)
Type54 and #730;V-Twin
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke96.0 x 101.0 mm (3.8 x 4.0 inches)
Valves/Cylinder
FuelingInjection
IgnitionElectronic ignition (Transistorised)
Exhaust
LubricationWet Sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionInverted telescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, oil damped, coil spring
Rear Travel
Seat
Seat Height716 mm (28.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,100 mm (43.3 inches)
Total Length2,410 mm (94.9 inches)
Total Width870 mm (34.3 inches)
Ground Clearance
Wheelbase1,690 mm (66.5 inches)
Dry Weight
Wet Weight328.0 kg (723.1 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR18
Rear Tire/Tyre200/50-ZR17
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki Intruder M1500. This Custom / cruiser model is powered by a 54 and #730;V-Twin V2, four-stroke engine with 1462.00 ccm (89.21 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki Intruder M1500 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR18 and the rear is 200/50-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Suzuki Intruder M1500 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
