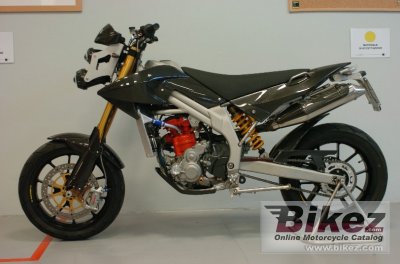

2013 Terra Modena 198 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Terra Modena 198.

Basic Specs

MakeTerra Modena
ModelTerra Modena 198


Displacement449.60 ccm (27.43 cubic inches)
TypeTitanium valves. Sand casted aluminium engine block.
DetailsSingle cylinder, four-stroke
Max RPM9000
Bore/Stroke98.0 x 59.6 mm (3.9 x 2.3 inches)
FuelingInjection. Indirect injection. Dell’Orto Ø 50mm throttle body.
IgnitionMagneti Marelli
LubricationSeparate lubrication system with one pressure pump and two scavenge pumps


Final DriveChain
ClutchSurflex anti-hop clutch, with ergal cover; wet, multiple hydraulically operated plates.
DrivelinePrimary distribution fitted with sprocket gears


Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.50 litres (2.25 gallons)


Frame TypeAluminium alloy Alsi 9 double bean main frame with a twin under mount.
Front SuspensionOhlins upside-down front suspension fork with 46 mm diameter rods and adjustable compression, rebound and pre-stressing
Front Travel
Rear SuspensionRear swinging fork and Ohlins DPS 46 mm single shock absorber fitted with inert gas cartridge and separator piston.
Rear Travel
Seat Height890 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,185 mm (46.7 inches)
Total Length2,150 mm (84.6 inches)
Total Width830 mm (32.7 inches)
Ground Clearance
Wheelbase1,048 mm (41.3 inches)
Dry Weight120.0 kg (264.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsMarchesini, in cast aluminium. Dunlop Sportmax tyres.


It appears you're interested in specifications for the Terra Modena 198. This Sport model is powered by a Titanium valves. Sand casted aluminium engine block. Single cylinder, four-stroke engine with 449.60 ccm (27.43 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Indirect injection. Dell’Orto Ø 50mm throttle body. allowing this machine to produce its horsepower and torque. According to our records engine heat of the Terra Modena 198 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Aluminium alloy Alsi 9 double bean main frame with a twin under mount.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Terra Modena 198 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Italian made bike.
