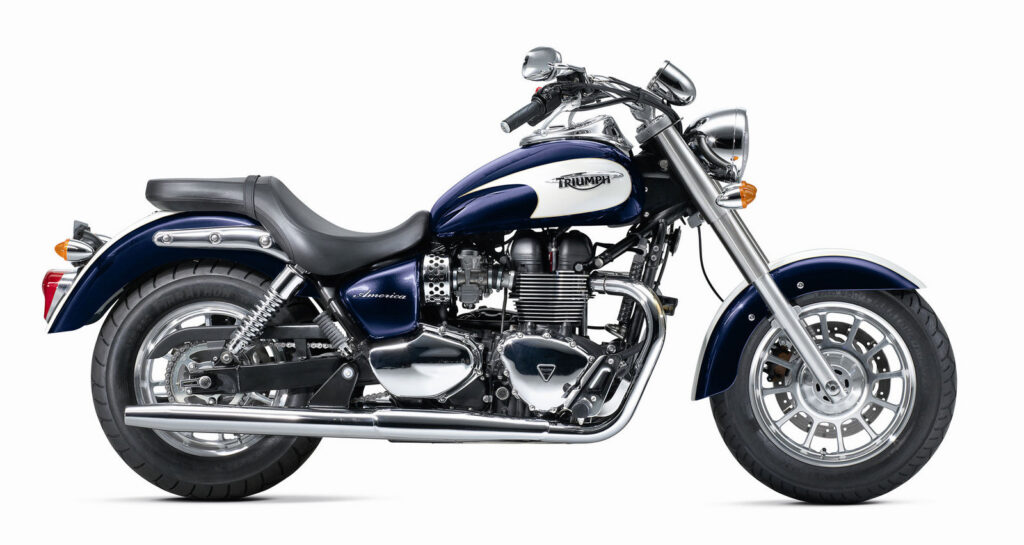

2013 Triumph America Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Triumph America.

Basic Specs

Year2013
MakeTriumph
ModelTriumph America
CostUS$ 8299. Prices depend on country, taxes, accessories, etc.

Engine

Displacement865.00 ccm (52.78 cubic inches)
Type270 degree firing interval
DetailsTwin, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke90.0 x 90.0 mm (3.5 x 3.5 inches)
Valves/Cylinder
FuelingInjection. Multipoint sequential electronic fuel injection with SAI
Ignition
ExhaustStainless steel twin-walled headers. twin chromed silencers
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet. multi-plate
DrivelineX ring chain

Performance

Horespower61.00 HP (44.5 kW)
Torque72.00 Nm (7.3 kgf-m or 53.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.30 litres (5.10 gallons)
Emissions

Chassis

Frame TypeTubular steel cradle
Rake33.0°
Trail143 mm (5.6 inches)
Front SuspensionKYB 41mm forks with polished stainless steel shrouds and polished lowers. 120mm travel
Front Travel
Rear SuspensionKYB chromed spring twin shocks with adjustable preload. 96mm rear wheel travel
Rear Travel
Seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,141 mm (44.9 inches)
Total Length2,420 mm (95.3 inches)
Total Width821 mm (32.3 inches)
Ground Clearance
Wheelbase1,617 mm (63.7 inches)
Dry Weight
Wet Weight250.0 kg (551.2 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-R16
Rear Tire/Tyre170/80-B15
Front BrakesSingle disc. Nissin 2-piston floating caliper
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Nissin 2-piston floating caliper
Rear Brake Diameter285 mm (11.2 inches)
WheelsCast aluminium alloy 12-spoke

Comments

It appears you're interested in specifications for the Triumph America. This Custom / cruiser model is powered by a 270 degree firing interval Twin, four-stroke engine with 865.00 ccm (52.78 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection with SAI allowing this machine to produce its 61.00 HP (44.5 kW) horsepower and 72.00 Nm (7.3 kgf-m or 53.1 ft.lbs) torque. According to our records engine heat of the Triumph America is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 130/90-R16 and the rear is 170/80-B15 . The entire package is supported by the frame, Tubular steel cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Nissin 2-piston floating caliper front brakes and Single disc. Nissin 2-piston floating caliper rear brakes. The Triumph America was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
