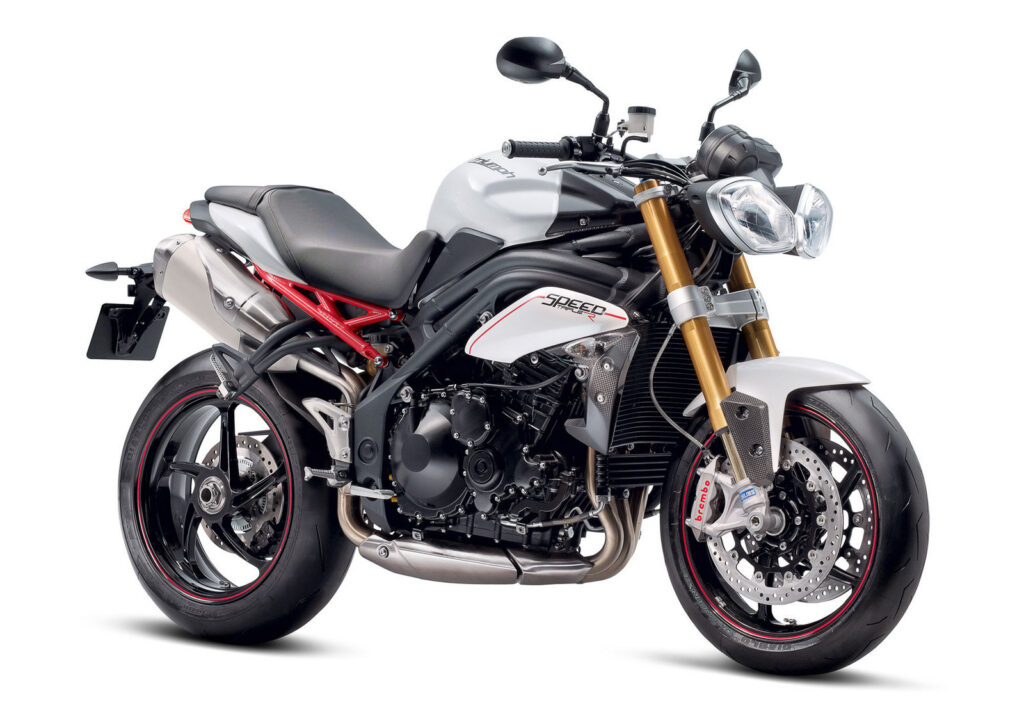

2013 Triumph Speed Triple R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Triumph Speed Triple R.

Basic Specs

Year2013
MakeTriumph
ModelTriumph Speed Triple R
CostUS$ 15999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1050.00 ccm (64.07 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke79.0 x 79.0 mm (3.1 x 3.1 inches)
Valves/Cylinder4
FuelingInjection. Multipoint sequential electronic fuel injection with SAI
Ignition
ExhaustStainless Steel 3 into 1 into 2. twin high level stainless steel pipes.
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet. multi-plate
Driveline

Performance

Horespower135.00 HP (98.5 kW)
Torque111.00 Nm (11.3 kgf-m or 81.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.92 litres/100 km (14.5 km/l or 33.99 mpg)
Fuel Capacity17.50 litres (4.62 gallons)
Emissions160.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminum beam twin-spar. Single-sided, aluminum alloy with eccentric chain adjuster swing arm.
Rake22.8°
Trail91 mm (3.6 inches)
Front SuspensionÖhlins 43mm NIX30 upside down forks with adjustable rebound and compression damping, 120mm travel
Front Travel
Rear SuspensionÖhlins TTX36 twin tube Monoshock with rebound and compression damping, 130mm rear wheel travel
Rear Travel
Seat
Seat Height825 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,110 mm (43.7 inches)
Total Length2,100 mm (82.7 inches)
Total Width795 mm (31.3 inches)
Ground Clearance
Wheelbase1,435 mm (56.5 inches)
Dry Weight
Wet Weight212.0 kg (467.4 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Brembo 4-piston Monobloc radial calipers , Switchable ABS.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Nissin single 2-piston sliding caliper, Switchable ABS.
Rear Brake Diameter255 mm (10.0 inches)
WheelsForged aluminium alloy 5 spoke

Comments

It appears you're interested in specifications for the Triumph Speed Triple R. This Naked bike model is powered by a In-line three, four-stroke engine with 1050.00 ccm (64.07 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection with SAI allowing this machine to produce its 135.00 HP (98.5 kW) horsepower and 111.00 Nm (11.3 kgf-m or 81.9 ft.lbs) torque. According to our records engine heat of the Triumph Speed Triple R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, Aluminum beam twin-spar. Single-sided, aluminum alloy with eccentric chain adjuster swing arm.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo 4-piston Monobloc radial calipers , Switchable ABS. front brakes and Single disc. Nissin single 2-piston sliding caliper, Switchable ABS. rear brakes. The Triumph Speed Triple R was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
