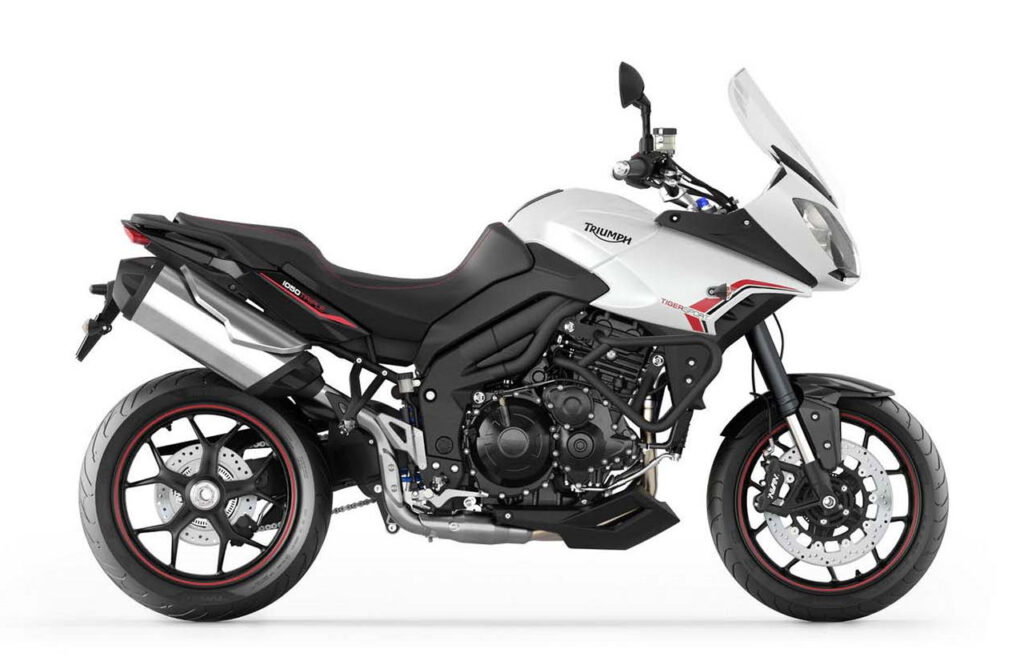

2013 Triumph Tiger 1050 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Triumph Tiger 1050.

Basic Specs

Year2013
MakeTriumph
ModelTriumph Tiger 1050
Cost

Engine

Displacement1050.00 ccm (64.07 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke79.0 x 79.0 mm (3.1 x 3.1 inches)
Valves/Cylinder4
FuelingInjection. Multipoint sequential electronic fuel injection with SAI (except NZ. ZA. AU)
IgnitionDigital-inductive type via engine management system
ExhaustStainless Steel 3 into 1, high level polished stainless steel silencer.
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet. multi-plate
Driveline

Performance

Horespower115.00 HP (83.9 kW)
Torque98.00 Nm (10.0 kgf-m or 72.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.72 litres/100 km (14.9 km/l or 35.00 mpg)
Fuel Capacity20.00 litres (5.28 gallons)
Emissions155.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminum beam twin-spar
Rake23.2°
Trail88 mm (3.5 inches)
Front SuspensionShowa 43mm upside down forks with adjustable preload, rebound and compression damping, 150mm travel
Front Travel
Rear SuspensionShowa Monoshock with adjustable preload and rebound damping, 150mm rear wheel travel
Rear Travel
Seat
Seat Height835 mm (32.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,320 mm (52.0 inches)
Total Length2,110 mm (83.1 inches)
Total Width840 mm (33.1 inches)
Ground Clearance
Wheelbase1,510 mm (59.4 inches)
Dry Weight
Wet Weight245.0 kg (540.1 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Floating discs, Nissin four-piston radial calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Two-piston Nissin calipers
Rear Brake Diameter250 mm (9.8 inches)
WheelsCast aluminium alloy multi-spoke

Comments

It appears you're interested in specifications for the Triumph Tiger 1050. This Allround model is powered by a In-line three, four-stroke engine with 1050.00 ccm (64.07 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection with SAI (except NZ. ZA. AU) allowing this machine to produce its 115.00 HP (83.9 kW) horsepower and 98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) torque. According to our records engine heat of the Triumph Tiger 1050 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminum beam twin-spar. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs, Nissin four-piston radial calipers front brakes and Single disc. Two-piston Nissin calipers rear brakes. The Triumph Tiger 1050 was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
