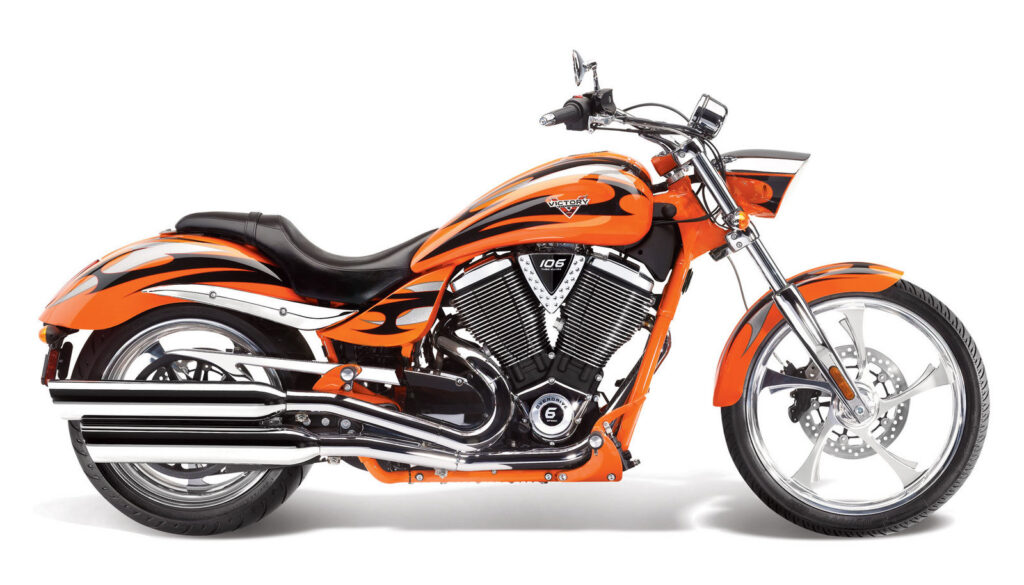

2013 Victory Jackpot Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Victory Jackpot.

Basic Specs

Year2013
MakeVictory
ModelVictory Jackpot
CostUS$ 18499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1737.14 ccm (106.00 cubic inches)
TypeSelf-adjusting cam chains, hydraulic lifters
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke101.0 x 108.0 mm (4.0 x 4.3 inches)
Valves/Cylinder4
FuelingInjection. Electronic Fuel Injection with dual 45mm throttle body
Ignition
ExhaustStaggered slash-cut dual exhaust with crossover
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchWet, multi-plate
DrivelineCarbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator.

Performance

Horespower
Torque12.00 Nm (1.2 kgf-m or 8.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.03 litres (4.50 gallons)
Emissions

Chassis

Frame Type
Rake32.9°
Trail124 mm (4.9 inches)
Front SuspensionConventional telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Front Travel
Rear SuspensionSingle, mono-tube gas, cast aluminum with rising rate linkage, 3.0 in / 75 mm travel, preload adjustable spring
Rear Travel
Seat
Seat Height653 mm (25.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,436 mm (95.9 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,684 mm (66.3 inches)
Dry Weight295.7 kg (652.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre250/40-R18
Front BrakesSingle disc. Floating rotor with 4-piston calipers.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Floating rotor with 2-piston caliper.
Rear Brake Diameter300 mm (11.8 inches)
WheelsDunlop Elite 3 tires

Comments

It appears you're interested in specifications for the Victory Jackpot. This Custom / cruiser model is powered by a Self-adjusting cam chains, hydraulic lifters V2, four-stroke engine with 1737.14 ccm (106.00 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Injection. Electronic Fuel Injection with dual 45mm throttle body allowing this machine to produce its horsepower and 12.00 Nm (1.2 kgf-m or 8.9 ft.lbs) torque. According to our records engine heat of the Victory Jackpot is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 250/40-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Floating rotor with 4-piston calipers. front brakes and Single disc. Floating rotor with 2-piston caliper. rear brakes. The Victory Jackpot was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
