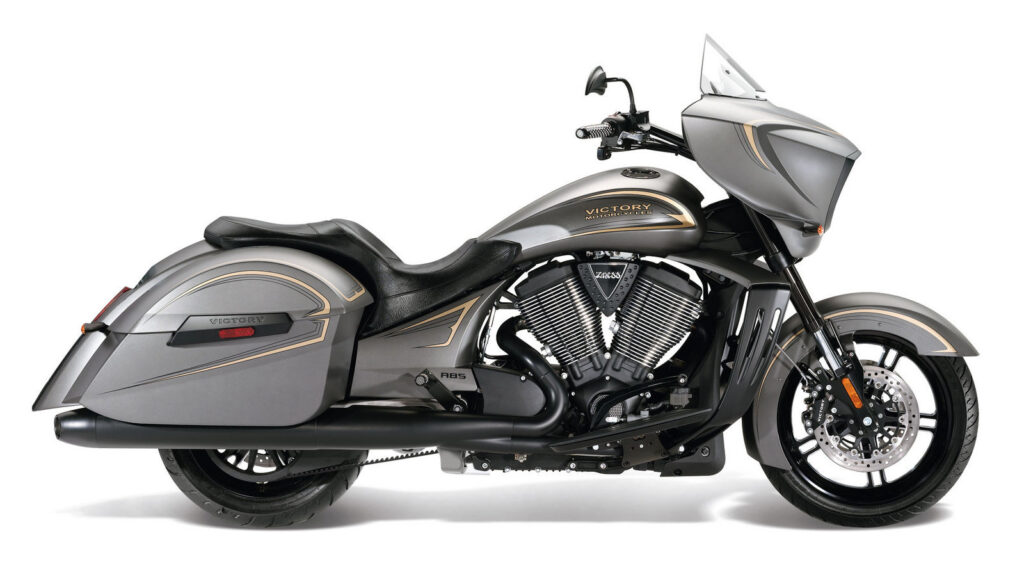

2013 Victory Zach Ness Cross Country Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Victory Zach Ness Cross Country.

Basic Specs

Year2013
MakeVictory
ModelVictory Zach Ness Cross Country
CostUS$ 25999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1737.14 ccm (106.00 cubic inches)
TypeSelf-adjusting cam chains, hydraulic lifters
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke101.0 x 108.0 mm (4.0 x 4.3 inches)
Valves/Cylinder4
FuelingInjection. Electronic Fuel Injection with dual 45mm throttle body
Ignition
ExhaustSplit dual exhaust with crossover
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchWet, multi-plate
DrivelineCarbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity21.95 litres (5.80 gallons)
Emissions

Chassis

Frame Type
Rake29.0°
Trail142 mm (5.6 inches)
Front SuspensionInverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Front Travel
Rear SuspensionSingle, mono-tube gas, cast aluminum with constant rate linkage, 4.7 in / 120 mm travel, air adjustable
Rear Travel
Seat
Seat Height667 mm (26.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,652 mm (104.4 inches)
Total Width
Ground Clearance147 mm (5.8 inches)
Wheelbase1,669 mm (65.7 inches)
Dry Weight347.0 kg (765.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/70-R18
Rear Tire/Tyre180/60-R16
Front BrakesDouble disc. Floating rotor with 4-piston calipers. ABS
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Floating rotor with 2-piston caliper. ABS
Rear Brake Diameter300 mm (11.8 inches)
Wheels130/70R18 Dunlop Elite 3

Comments

It appears you're interested in specifications for the Victory Zach Ness Cross Country. This Touring model is powered by a Self-adjusting cam chains, hydraulic lifters V2, four-stroke engine with 1737.14 ccm (106.00 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Injection. Electronic Fuel Injection with dual 45mm throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Victory Zach Ness Cross Country is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/70-R18 and the rear is 180/60-R16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating rotor with 4-piston calipers. ABS front brakes and Single disc. Floating rotor with 2-piston caliper. ABS rear brakes. The Victory Zach Ness Cross Country was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
