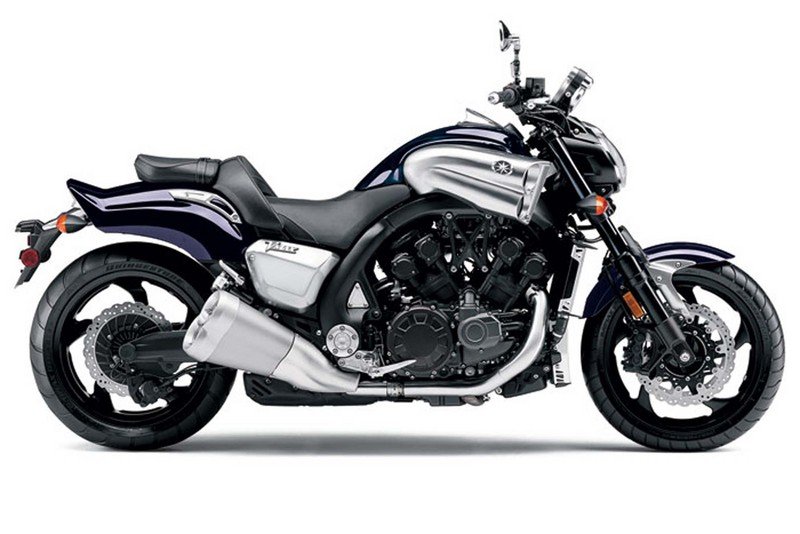

2013 Yamaha VMAX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2013 Yamaha VMAX.

Basic Specs

Year2013
MakeYamaha
ModelYamaha VMAX
CostUS$ 19990. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1671.58 ccm (102.00 cubic inches)
Type65° V-4
DetailsV4, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke90.0 x 66.0 mm (3.5 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. Fuel Injection with YCC-T and YCC-I
IgnitionTCI: Transistor Controlled Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption8.71 litres/100 km (11.5 km/l or 27.01 mpg)
Fuel Capacity15.14 litres (4.00 gallons)
Emissions202.1 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminum
Rake31.0°
Trail147 mm (5.8 inches)
Front Suspension52mm telescopic cartridge fork w/oxidized titanium coating. Fully adjustable preload, compression and rebound
Front Travel119 mm (4.7 inches)
Rear SuspensionSingle shock w/remote reservoir and remote adjustable for preload, compression and rebound
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,191 mm (46.9 inches)
Total Length2,395 mm (94.3 inches)
Total Width820 mm (32.3 inches)
Ground Clearance
Wheelbase1,699 mm (66.9 inches)
Dry Weight
Wet Weight309.8 kg (683.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-18
Rear Tire/Tyre200/50-18
Front BrakesDouble disc. ABS. Six-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Single-piston caliper.
Rear Brake Diameter298 mm (11.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Yamaha VMAX. This Custom / cruiser model is powered by a 65° V-4 V4, four-stroke engine with 1671.58 ccm (102.00 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Injection. Fuel Injection with YCC-T and YCC-I allowing this machine to produce its horsepower and torque. According to our records engine heat of the Yamaha VMAX is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-18 and the rear is 200/50-18 . The entire package is supported by the frame, Aluminum. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Six-piston calipers. Radially mounted. front brakes and Single disc. ABS. Single-piston caliper. rear brakes. The Yamaha VMAX was launched in 2013, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
