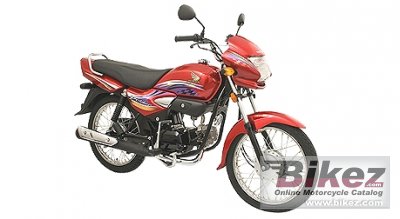

These are the known mechanical and performance specifications for your 2014 Atlas Honda Pridor 100.
Basic Specs
Engine
Displacement97.10 ccm (5.93 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.1:1
Bore/Stroke50.0 x 49.5 mm (2.0 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
Cooling
Drivetrain
Gearbox4-speed
Final DriveChain
ClutchMultiple wet plates
DrivelineRoller Chain
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions
Chassis
Frame TypeDouble craddle tubular type
Rake
Trail
Front SuspensionTelescopic Fork 94 mm travel
Front Travel
Rear SuspensionSwing arm 84 mm travel
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,045 mm (41.1 inches)
Total Length1,983 mm (78.1 inches)
Total Width735 mm (28.9 inches)
Ground Clearance160 mm (6.3 inches)
Wheelbase
Dry Weight96.0 kg (211.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.75-18
Rear Tire/Tyre2.50-17
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Sold in Pakistan.
