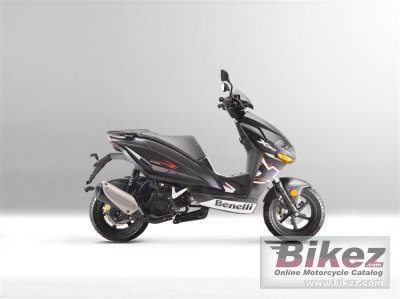

2014 Benelli X 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Benelli X 125.

Basic Specs

Year2014
MakeBenelli
ModelBenelli X 125
Cost

Engine

Displacement124.60 ccm (7.60 cubic inches)
TypeHorizontal cylinder
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.3:1
Bore/Stroke52.4 x 57.8 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingCarburettor
Ignition
ExhaustWith catalytic converter
LubricationWet crankcase
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchAutomatic centrifugal
DrivelinePrimary V-bet, final gears

Performance

Horespower9.50 HP (6.9 kW)
Torque9.20 Nm (0.9 kgf-m or 6.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.20 litres (1.64 gallons)
Emissions

Chassis

Frame TypeSteel trestle with a double cradle in high tensile strength steel tube
Rake
Trail
Front SuspensionHydraulic telescopic fork ø33 mm
Front Travel
Rear SuspensionFloating engine with double hydraulic rear dumper
Rear Travel
Seat
Seat Height818 mm (32.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,190 mm (46.9 inches)
Total Length1,850 mm (72.8 inches)
Total Width700 mm (27.6 inches)
Ground Clearance
Wheelbase1,340 mm (52.8 inches)
Dry Weight115.0 kg (253.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-12
Rear Tire/Tyre140/70-12
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsAluminum alloy

Comments

It appears you're interested in specifications for the Benelli X 125. This Scooter model is powered by a Horizontal cylinder Single cylinder, four-stroke engine with 124.60 ccm (7.60 cubic inches) of actual displacement before 10.3:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 9.50 HP (6.9 kW) horsepower and 9.20 Nm (0.9 kgf-m or 6.8 ft.lbs) torque. According to our records engine heat of the Benelli X 125 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 140/70-12 . The entire package is supported by the frame, Steel trestle with a double cradle in high tensile strength steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Benelli X 125 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
