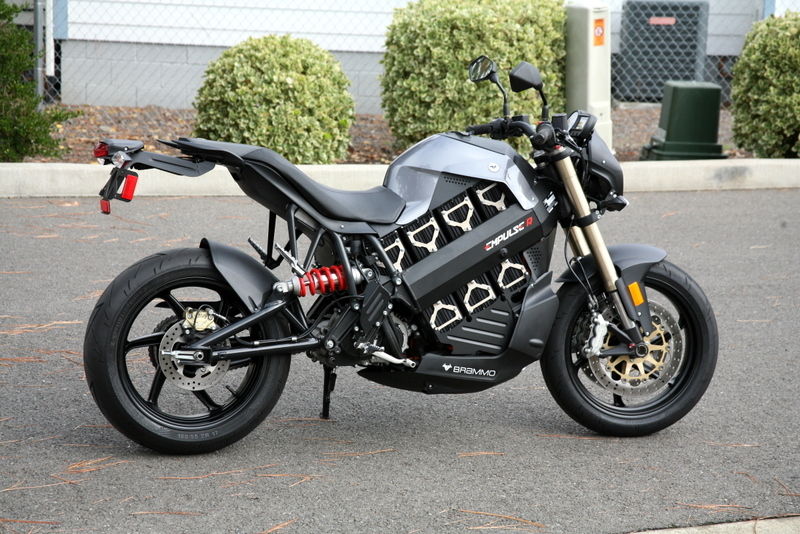

These are the known mechanical and performance specifications for your 2014 Brammo Empulse R.
Basic Specs
Engine
Displacement
TypeSealed Permanent AC Synchronous motor
DetailsElectric
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchIET 6 speed gearbox with multi-plate, hydraulic activated wet clutch
Driveline
Performance
Horespower53.64 HP (39.2 kW)
Torque90.00 Nm (9.2 kgf-m or 66.4 ft.lbs)
Top Speed160.9 km/h (100.0 mph)
Chassis
Frame TypeLightweight extruded and welded aluminum - serves a battery tray (patent pending)
Rake
Trail
Front SuspensionFully Adjustable 43mm Marzocchi Forks
Front Travel
Rear SuspensionFully Adjustable Sachs Shock
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,067 mm (42.0 inches)
Total Length2,057 mm (81.0 inches)
Total Width
Ground Clearance
Wheelbase1,473 mm (58.0 inches)
Dry Weight185.0 kg (407.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Floating disk with twin four piston Hydraulic Brembo Brake Calipers, Radial Mount
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Brembo single disk with dual piston Hydraulic Brembo Brake Caliper
Rear Brake Diameter
WheelsMarchesini
Comments
Brammo Power™ BPM15/90 Lithium-Ion ( NCM Chemistry), 103.6 Volt. Recharge time approximately 8 hours. Range: 125 km. Under deceleration, energy is returned to the battery system to both extend driving range and provide familiar rider feedback.
