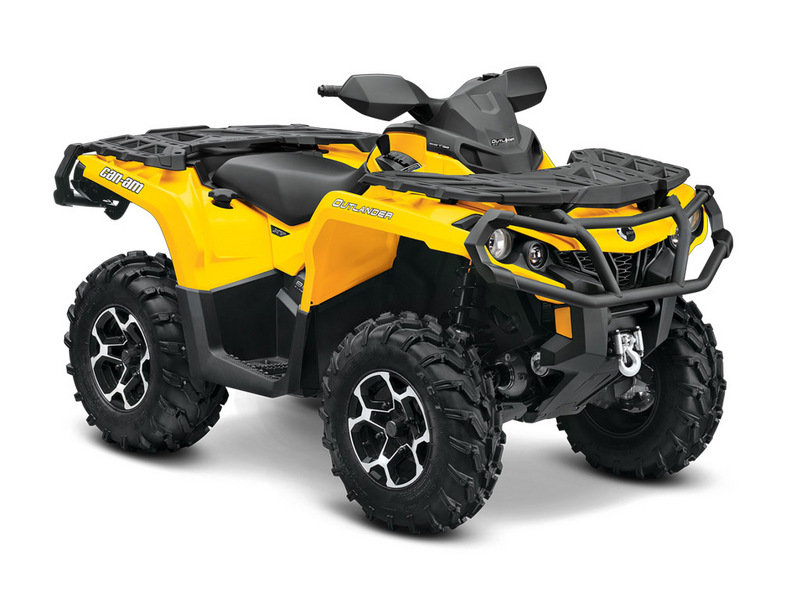

2014 Can-Am Outlander 650 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Can-Am Outlander 650.

Basic Specs

Year2014
MakeCan-Am
ModelCan-Am Outlander 650
TypeATV
CostUS$ 8799. Prices depend on country, taxes, accessories, etc.

Engine

Displacement649.60 ccm (39.64 cubic inches)
TypeRotax engine
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke82.0 x 62.0 mm (3.2 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. 46 mm Throttle Body, 2 Siemens VDO injectors
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
DrivelineSelectable 2WD / 4WD shaft driven with Visco-Lok auto-locking front differential*

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.44 litres (5.40 gallons)
Emissions

Chassis

Frame TypeSurrounding Spar Technology (SST) G2
Rake
Trail
Front SuspensionDouble A-arm
Front Travel229 mm (9.0 inches)
Rear SuspensionTorsional Trailing arm Independent (TTI)
Rear Travel220 mm (8.7 inches)
Seat
Seat Height876 mm (34.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,257 mm (49.5 inches)
Total Length2,184 mm (86.0 inches)
Total Width1,168 mm (46.0 inches)
Ground Clearance279 mm (11.0 inches)
Wheelbase1,295 mm (51.0 inches)
Dry Weight329.3 kg (726.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre26/8-12
Rear Tire/Tyre26/10-12
Front BrakesDouble disc. Hydraulic. Two-piston calipers.
Front Brake Diameter214 mm (8.4 inches)
Rear BrakesSingle disc. Hydraulic. Two-piston calipers.
Rear Brake Diameter214 mm (8.4 inches)
WheelsCarlisle Badland tires

Comments

It appears you're interested in specifications for the Can-Am Outlander 650. This ATV model is powered by a Rotax engine V2, four-stroke engine with 649.60 ccm (39.64 cubic inches) of actual displacement before compression. Fueling is metered via Injection. 46 mm Throttle Body, 2 Siemens VDO injectors allowing this machine to produce its horsepower and torque. According to our records engine heat of the Can-Am Outlander 650 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 26/8-12 and the rear is 26/10-12 . The entire package is supported by the frame, Surrounding Spar Technology (SST) G2. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Hydraulic. Two-piston calipers. front brakes and Single disc. Hydraulic. Two-piston calipers. rear brakes. The Can-Am Outlander 650 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Digitally Encoded Security System (D.E.S.S.™)
