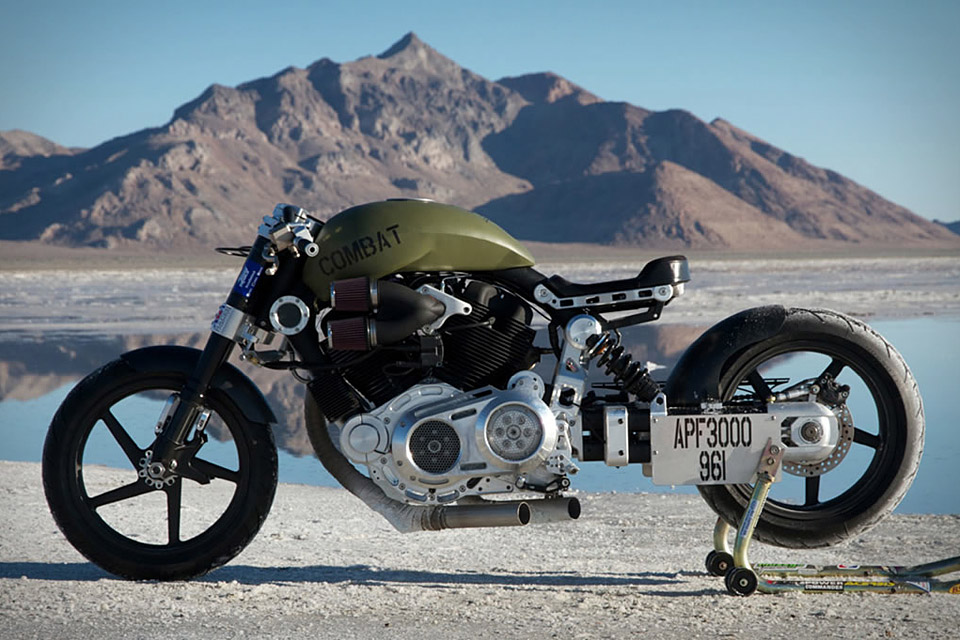

2014 Confederate X132 Hellcat Combat Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Confederate X132 Hellcat Combat.

Basic Specs

Year2014
MakeConfederate
ModelConfederate X132 Hellcat Combat
CostUS$ 55000. Prices depend on country, taxes, accessories, etc.

Engine

Displacement2163.23 ccm (132.00 cubic inches)
TypeX 132 Copperhead, 56° V-Twin. One-piece Forged Crank.
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke111.8 x 111.8 mm (4.4 x 4.4 inches)
Valves/Cylinder
FuelingInjection
Ignition
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower132.00 HP (96.4 kW)
Torque203.40 Nm (20.7 kgf-m or 150.0 ft.lbs)
Top Speed277.1 km/h (172.2 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.98 litres (4.75 gallons)
Emissions

Chassis

Frame Type3 inch 120 wall hard steel backbone; 2 inch 120 wall hard steel downtube; Hand TIG wld fabrication
Rake23.5°
Trail97 mm (3.8 inches)
Front SuspensionCustom 48 mm fork
Front Travel
Rear SuspensionCustom Race Tech Coil-Over-Shock; Rebound and Compression Adjustable for Low and High Speed Actuation
Rear Travel
SeatSolo seat
Seat Height711 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,588 mm (62.5 inches)
Dry Weight222.3 kg (490.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Dual Beringer 4 Piston AEROTEC Radial Calipers; Dual Beringer AERONAL Floating Stainless Steel Discs
Front Brake Diameter
Rear BrakesSingle disc. Single 2 Piston Brembo Monobloc Caliper; Cross-drilled Brembo Stainless Steel Disc
Rear Brake Diameter
WheelsBlackstone Carbon fiber

Comments

It appears you're interested in specifications for the Confederate X132 Hellcat Combat. This Naked bike model is powered by a X 132 Copperhead, 56° V-Twin. One-piece Forged Crank. V2, four-stroke engine with 2163.23 ccm (132.00 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 132.00 HP (96.4 kW) horsepower and 203.40 Nm (20.7 kgf-m or 150.0 ft.lbs) torque. According to our records engine heat of the Confederate X132 Hellcat Combat is moderated by . You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, 3 inch 120 wall hard steel backbone; 2 inch 120 wall hard steel downtube; Hand TIG wld fabrication. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Dual Beringer 4 Piston AEROTEC Radial Calipers; Dual Beringer AERONAL Floating Stainless Steel Discs front brakes and Single disc. Single 2 Piston Brembo Monobloc Caliper; Cross-drilled Brembo Stainless Steel Disc rear brakes. The Confederate X132 Hellcat Combat was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
