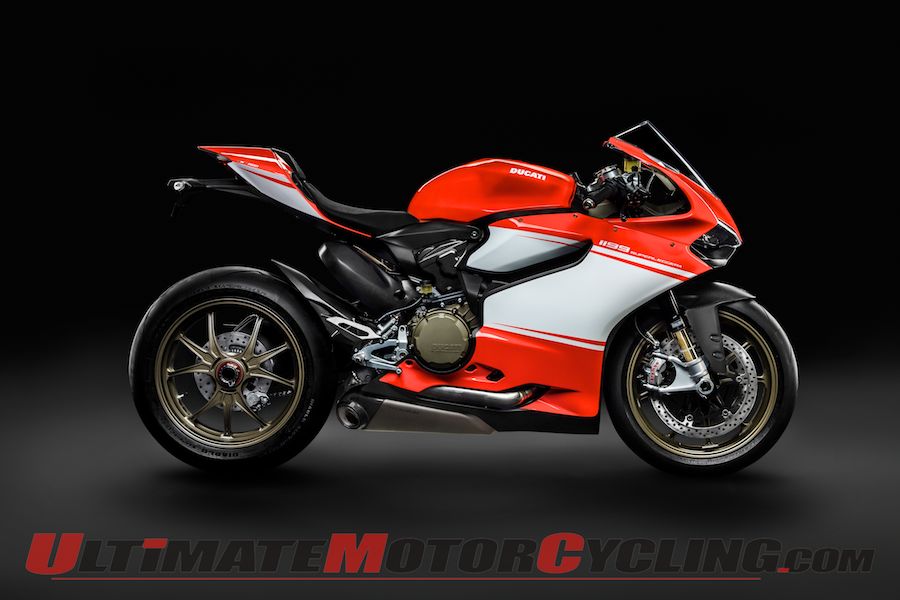

2014 Ducati Superleggera 1199 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Ducati Superleggera 1199.

Basic Specs

Year2014
MakeDucati
ModelDucati Superleggera 1199
Cost

Engine

Displacement1198.40 ccm (73.13 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke106.0 x 67.9 mm (4.2 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. 53mm throttle bodies with full Ride by Wire
Ignition
Exhaust2-1-2 system, primary tubes in titanium. Twin titanium mufflers. 2 lambda probes and 2 catalytic converters
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchLight action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Driveline

Performance

Horespower200.00 HP (146.0 kW)
Torque134.00 Nm (13.7 kgf-m or 98.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeMonocoque in magnesium alloy
Rake24.3°
Trail93 mm (3.7 inches)
Front SuspensionFully adjustable 43mm USD Öhlins FL 916 fork with TiN treatment, billet fork bottoms and lightweight stress-optimized outer tubes
Front Travel120 mm (4.7 inches)
Rear SuspensionFully adjustable single Öhlins TTX36 shock with titanium spring, with linkage adjustable between progressive/flat. Aluminium single-sided swingarm. Adjustable swingarm pivot.
Rear Travel130 mm (5.1 inches)
SeatSingle seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,511 mm (59.5 inches)
Dry Weight155.0 kg (341.7 pounds)
Wet Weight177.0 kg (390.2 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. ABS. Floating disc. Two-piston calipers.
Rear Brake Diameter245 mm (9.6 inches)
Wheels3-spoke magnesium alloy

Comments

It appears you're interested in specifications for the Ducati Superleggera 1199. This Naked bike model is powered by a V2, four-stroke engine with 1198.40 ccm (73.13 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection. 53mm throttle bodies with full Ride by Wire allowing this machine to produce its 200.00 HP (146.0 kW) horsepower and 134.00 Nm (13.7 kgf-m or 98.8 ft.lbs) torque. According to our records engine heat of the Ducati Superleggera 1199 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/55-ZR17 . The entire package is supported by the frame, Monocoque in magnesium alloy. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. front brakes and Single disc. ABS. Floating disc. Two-piston calipers. rear brakes. The Ducati Superleggera 1199 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
