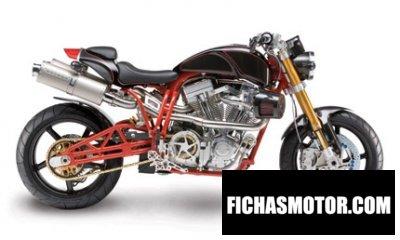

2014 Ecosse The Heretic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Ecosse The Heretic.

Basic Specs

Year2014
MakeEcosse
ModelEcosse The Heretic
Cost

Engine

Displacement1966.00 ccm (119.97 cubic inches)
TypeBillet aluminum; 45-degree American V-Twin. Hand built, blueprinted and balanced. Dynamically balanced crank for reduced vibration.
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke108.0 x 108.0 mm (4.3 x 4.3 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni 45mm flat slide
Ignition
Exhaust2 into 1. Stainless steel head pipes with dual titanium mufflers.
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelinePrimary: Wet chain.

Performance

Horespower133.00 HP (97.1 kW)
Torque185.77 Nm (18.9 kgf-m or 137.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.90 litres (4.20 gallons)
Emissions

Chassis

Frame TypeCrMo mainframe, subframe and swingarm. Carbon fiber (headlight, fenders, tank, tail, tach shroud, air filter cover and seat pans)
Rake25.0°
Trail
Front SuspensionÖhlins Upside-down, fully adjustable fork
Front Travel132 mm (5.2 inches)
Rear SuspensionÖhlins fully adjustable. 3 modes, dragster, cruiser, road racer.
Rear Travel165 mm (6.5 inches)
SeatLow-profile (sleek) or high-profile (plush)
Seat Height698 mm (27.5 inches) If adjustable, lowest setting.
Alt. Seat Height775 mm (30.5 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance165 mm (6.5 inches)
Wheelbase1,537 mm (60.5 inches)
Dry Weight205.0 kg (451.9 pounds)
Wet Weight221.0 kg (487.2 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/70-ZR17
Front BrakesDouble disc. 6-piston radial calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-piston calipers
Rear Brake Diameter260 mm (10.2 inches)
Wheels17´ forged aluminum. Silver or black. Optional BST carbon-fiber wheels.

Comments

It appears you're interested in specifications for the Ecosse The Heretic. This Naked bike model is powered by a Billet aluminum; 45-degree American V-Twin. Hand built, blueprinted and balanced. Dynamically balanced crank for reduced vibration. V2, four-stroke engine with 1966.00 ccm (119.97 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Carburettor. Mikuni 45mm flat slide allowing this machine to produce its 133.00 HP (97.1 kW) horsepower and 185.77 Nm (18.9 kgf-m or 137.0 ft.lbs) torque. According to our records engine heat of the Ecosse The Heretic is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/70-ZR17 . The entire package is supported by the frame, CrMo mainframe, subframe and swingarm. Carbon fiber (headlight, fenders, tank, tail, tach shroud, air filter cover and seat pans). We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 6-piston radial calipers front brakes and Single disc. 2-piston calipers rear brakes. The Ecosse The Heretic was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Optional polished engine, custom ergonomics, GP shift pattern, and more. Limited edition bike. Each unit engraved with sequential production number.
