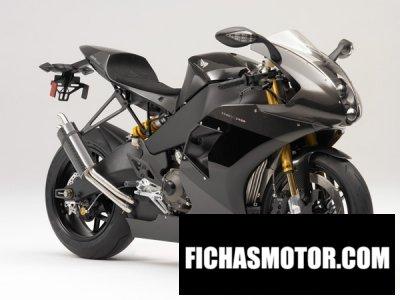

2014 Erik Buell Racing 1190RS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Erik Buell Racing 1190RS.

Basic Specs

Year2014
MakeErik Buell Racing
ModelErik Buell Racing 1190RS
TypeSport
CostUS$ 18995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1190.00 ccm (72.61 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression13.4:1
Bore/Stroke106.0 x 67.5 mm (4.2 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Electronic Fuel injection with 2 port injectors and 2 showerhead injectors
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchHydraulic actuation, vacuum operated slipper clutch
Driveline520 Chain, 16/41

Performance

Horespower185.00 HP (135.0 kW)
Torque137.80 Nm (14.1 kgf-m or 101.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.10 litres (4.52 gallons)
Emissions

Chassis

Frame TypeAluminum frame with integral fuel reservoir. Optimized stiffness aluminum swing arm.
Rake22.0°
Trail86 mm (3.4 inches)
Front SuspensionShowa, inverted big piston front forks
Front Travel
Rear SuspensionShowa, single shock without linkage
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight176.0 kg (388.0 pounds)
Wet Weight190.0 kg (418.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-R17
Rear Tire/Tyre190/55-R17
Front BrakesDouble disc. ISO finned rotor, 8 piston caliper with cooling duct
Front Brake Diameter
Rear BrakesSingle disc. Lightweight disc, 2 piston caliper
Rear Brake Diameter
WheelsMagnesium

Comments

It appears you're interested in specifications for the Erik Buell Racing 1190RS. This Sport model is powered by a V2, four-stroke engine with 1190.00 ccm (72.61 cubic inches) of actual displacement before 13.4:1 compression. Fueling is metered via Injection. Electronic Fuel injection with 2 port injectors and 2 showerhead injectors allowing this machine to produce its 185.00 HP (135.0 kW) horsepower and 137.80 Nm (14.1 kgf-m or 101.6 ft.lbs) torque. According to our records engine heat of the Erik Buell Racing 1190RS is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-R17 and the rear is 190/55-R17 . The entire package is supported by the frame, Aluminum frame with integral fuel reservoir. Optimized stiffness aluminum swing arm.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ISO finned rotor, 8 piston caliper with cooling duct front brakes and Single disc. Lightweight disc, 2 piston caliper rear brakes. The Erik Buell Racing 1190RS was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Brand also called EBR.
