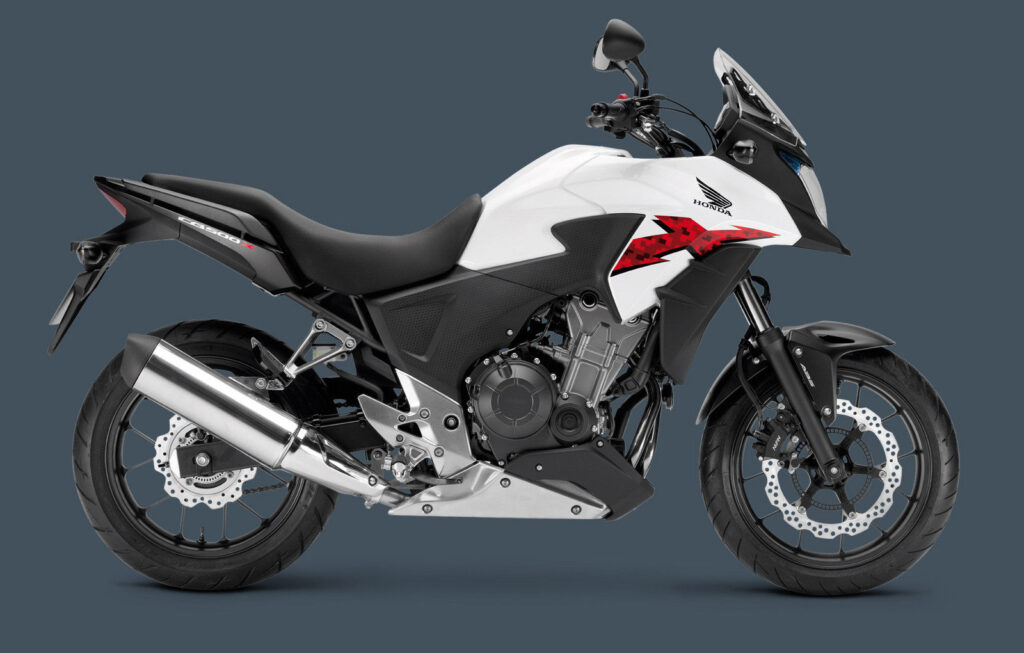

2014 Honda CB500X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Honda CB500X.

Basic Specs

Year2014
MakeHonda
ModelHonda CB500X
TypeSport
CostUS$ 6299. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement471.00 ccm (28.74 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke67.0 x 66.8 mm (2.6 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with 34mm throttle bodies
IgnitionComputer-controlled digital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multiplate
DrivelineO-ring-sealed chain
Chain Clutch Plates

Performance

Horespower46.94 HP (34.3 kW)
Torque43.00 Nm (4.4 kgf-m or 31.7 ft.lbs)
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.30 litres (4.57 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake26.5°
Trail109 mm (4.3 inches)
Front Suspension41mm fork
Front Travel140 mm (5.5 inches)
Rear SuspensionPro-Link single shock with nine-position spring preload adjustability
Rear Travel119 mm (4.7 inches)
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,262 mm (49.7 inches)
Total Length2,096 mm (82.5 inches)
Total Width822 mm (32.4 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,421 mm (55.9 inches)
Dry Weight178.0 kg (392.4 pounds)
Wet Weight195.0 kg (430.0 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-17
Front BrakesDouble disc. Wave disc. Two-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Wave disc.
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda CB500X. This Sport model is powered by a Twin, four-stroke engine with 471.00 ccm (28.74 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. PGM-FI with 34mm throttle bodies allowing this machine to produce its 46.94 HP (34.3 kW) horsepower and 43.00 Nm (4.4 kgf-m or 31.7 ft.lbs) torque. According to our records engine heat of the Honda CB500X is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 160/60-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Wave disc. Two-piston calipers. front brakes and Single disc. Wave disc. rear brakes. The Honda CB500X was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CB500X
