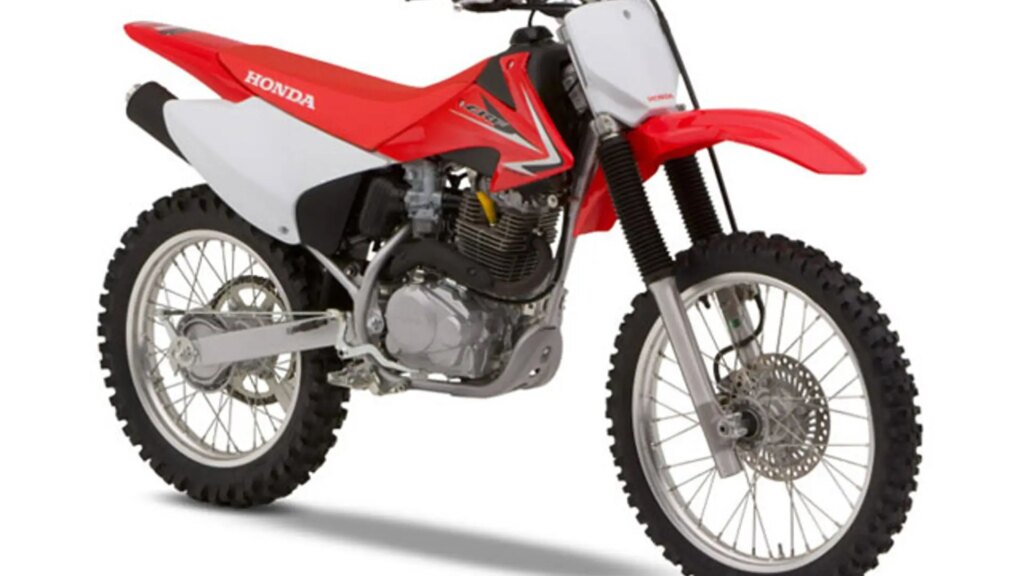

2014 Honda CRF150F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Honda CRF150F.

Basic Specs

Year2014
MakeHonda
ModelHonda CRF150F
CostUS$ 3640. Prices depend on country, taxes, accessories, etc.

Engine

Displacement149.00 ccm (9.09 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke57.3 x 57.8 mm (2.3 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. 24mm piston-valve carburetor
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline#520 O-ring-sealed chain; 13T/48T

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.19 litres (1.90 gallons)
Emissions

Chassis

Frame Type
Rake26.2°
Trail88 mm (3.5 inches)
Front Suspension35mm leading-axle Showa® fork; 9.1 inches travel
Front Travel231 mm (9.1 inches)
Rear SuspensionPro-Link® Showa single-shock; 8.9 inches travel
Rear Travel226 mm (8.9 inches)
Seat
Seat Height833 mm (32.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance257 mm (10.1 inches)
Wheelbase1,328 mm (52.3 inches)
Dry Weight
Wet Weight106.1 kg (233.9 pounds)

Wheels & Brakes

Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter149 mm (5.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CRF150F. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 149.00 ccm (9.09 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. 24mm piston-valve carburetor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF150F is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 70/100-19 and the rear is 90/100-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda CRF150F was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF150F
