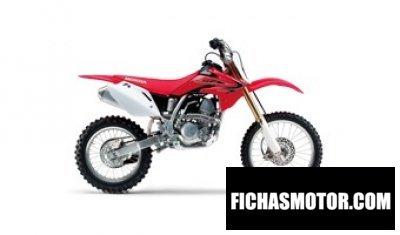

2014 Honda CRF150RII Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Honda CRF150RII.

Basic Specs

Year2014
MakeHonda
ModelHonda CRF150RII
Cost

Engine

Displacement149.70 ccm (9.13 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.7:1
Bore/Stroke66.0 x 43.7 mm (2.6 x 1.7 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin® 32mm flat slide with Throttle Position Sensor (TPS)
IgnitionElectronic advance CDI ignition type digital
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline#420 chain; 15T/50T

Performance

Horespower24.50 HP (17.9 kW)
Torque14.40 Nm (1.5 kgf-m or 10.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity4.30 litres (1.14 gallons)
Emissions

Chassis

Frame TypeSemi-double cradle, steel
Rake27.0°
Trail78 mm (3.1 inches)
Front Suspension37mm fully adjustable leading-axle inverted Showa® cartridge fork
Front Travel275 mm (10.8 inches)
Rear SuspensionPro-Link® fully adjustable Showa single shock;
Rear Travel282 mm (11.1 inches)
Seat
Seat Height866 mm (34.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,171 mm (46.1 inches)
Total Length1,900 mm (74.8 inches)
Total Width770 mm (30.3 inches)
Ground Clearance336 mm (13.2 inches)
Wheelbase1,260 mm (49.6 inches)
Dry Weight
Wet Weight84.4 kg (186.1 pounds)

Wheels & Brakes

Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter190 mm (7.5 inches)
WheelsAluminium rim/wire spoke

Comments

It appears you're interested in specifications for the Honda CRF150RII. This Cross / motocross model is powered by a Single cylinder, four-stroke engine with 149.70 ccm (9.13 cubic inches) of actual displacement before 11.7:1 compression. Fueling is metered via Carburettor. Keihin® 32mm flat slide with Throttle Position Sensor (TPS) allowing this machine to produce its 24.50 HP (17.9 kW) horsepower and 14.40 Nm (1.5 kgf-m or 10.6 ft.lbs) torque. According to our records engine heat of the Honda CRF150RII is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 70/100-19 and the rear is 90/100-16 . The entire package is supported by the frame, Semi-double cradle, steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda CRF150RII was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
