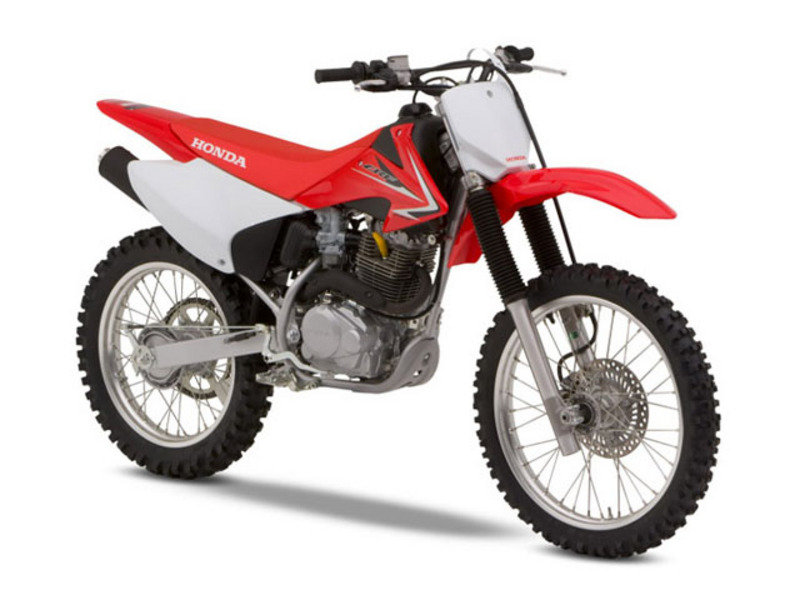

2014 Honda CRF230F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Honda CRF230F.

Basic Specs

Year2014
MakeHonda
ModelHonda CRF230F
CostUS$ 4170. Prices depend on country, taxes, accessories, etc.

Engine

Displacement223.00 ccm (13.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke65.5 x 66.2 mm (2.6 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor. 26mm piston-valve carburetor
IgnitionCD
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline#520 O-ring-sealed chain; 13T/50T

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.19 litres (1.90 gallons)
Emissions

Chassis

Frame Type
Rake27.3°
Trail112 mm (4.4 inches)
Front Suspension37mm leading-axle Showa® fork; 9.5 inches travel
Front Travel241 mm (9.5 inches)
Rear SuspensionPro-Link® Showa single shock with spring-preload adjustability; 9.0 inches travel
Rear Travel
Seat
Seat Height866 mm (34.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance297 mm (11.7 inches)
Wheelbase1,374 mm (54.1 inches)
Dry Weight
Wet Weight112.9 kg (249.0 pounds)

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre100/100-18
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter223 mm (8.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CRF230F. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 223.00 ccm (13.61 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor. 26mm piston-valve carburetor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF230F is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is 100/100-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda CRF230F was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF230F
