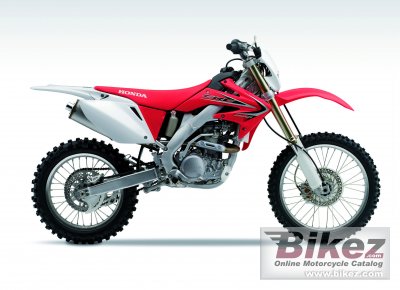

2014 Honda CRF250X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Honda CRF250X.

Basic Specs

Year2014
MakeHonda
ModelHonda CRF250X
CostUS$ 7410. Prices depend on country, taxes, accessories, etc.

Engine

Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.9:1
Bore/Stroke78.0 x 52.2 mm (3.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline#520 T-ring-sealed chain; 14T/53T

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.19 litres (1.90 gallons)
Emissions

Chassis

Frame Type
Rake27.5°
Trail118 mm (4.6 inches)
Front Suspension47mm inverted Showa® cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inches travel
Front Travel315 mm (12.4 inches)
Rear SuspensionPro-Link® Showa® single shock with spring-preload, 17-position rebound-damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.3 inches travel
Rear Travel312 mm (12.3 inches)
Seat
Seat Height958 mm (37.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance345 mm (13.6 inches)
Wheelbase1,481 mm (58.3 inches)
Dry Weight
Wet Weight115.2 kg (254.0 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre100/100-18
Front BrakesDouble disc. Two-piston calipers.
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CRF250X. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 249.00 ccm (15.19 cubic inches) of actual displacement before 12.9:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF250X is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 100/100-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Two-piston calipers. front brakes and Single disc rear brakes. The Honda CRF250X was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF250X
