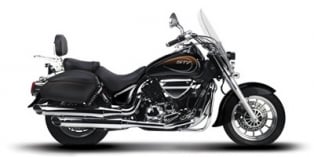

2014 Hyosung ST7 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Hyosung ST7.

Basic Specs

Year2014
MakeHyosung
ModelHyosung ST7
CostUS$ 7299. Prices depend on country, taxes, accessories, etc.

Engine

Displacement678.20 ccm (41.38 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke81.5 x 65.0 mm (3.2 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchWet, Multiplate
Driveline

Performance

Horespower79.00 HP (57.7 kW)
Torque66.99 Nm (6.8 kgf-m or 49.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.13 litres/100 km (24.2 km/l or 56.95 mpg)
Fuel Capacity17.03 litres (4.50 gallons)
Emissions95.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake
Trail
Front SuspensionConventional Telescopic fork
Front Travel
Rear SuspensionSwing arm with Hydraulic Double shock absorber (Preload adjustable)
Rear Travel
Seat2-person seat
Seat Height675 mm (26.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,135 mm (44.7 inches)
Total Length2,470 mm (97.2 inches)
Total Width
Ground Clearance
Wheelbase1,690 mm (66.5 inches)
Dry Weight244.0 kg (538.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/80-16
Rear Tire/Tyre170/80-15
Front BrakesSingle disc. Semi floating single disc, 4 pistons caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 2 pistons caliper
Rear Brake Diameter270 mm (10.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Hyosung ST7. This Custom / cruiser model is powered by a V2, four-stroke engine with 678.20 ccm (41.38 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 79.00 HP (57.7 kW) horsepower and 66.99 Nm (6.8 kgf-m or 49.4 ft.lbs) torque. According to our records engine heat of the Hyosung ST7 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/80-16 and the rear is 170/80-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Semi floating single disc, 4 pistons caliper front brakes and Single disc. 2 pistons caliper rear brakes. The Hyosung ST7 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
