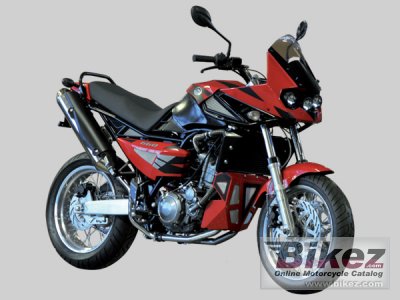

These are the known mechanical and performance specifications for your 2014 Jawa-CZ 660.
Basic Specs
Engine
Displacement651.90 ccm (39.78 cubic inches)
TypeMinarelli engine
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder4
FuelingCarburettor. Bing
Ignition
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower47.47 HP (34.6 kW)
Torque57.00 Nm (5.8 kgf-m or 42.0 ft.lbs)
Top Speed165.0 km/h (102.5 mph)
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions
Chassis
Frame TypeTubular
Rake
Trail
Front SuspensionPaioli telescopic forks
Front Travel150 mm (5.9 inches)
Rear SuspensionBitubo shocks
Rear Travel170 mm (6.7 inches)
Seat
Seat Height860 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,518 mm (59.8 inches)
Dry Weight195.0 kg (429.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/90-19
Rear Tire/Tyre140/80-17
Front BrakesDouble disc. Floating two piston calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Radial four piston
Rear Brake Diameter220 mm (8.7 inches)
Wheels
