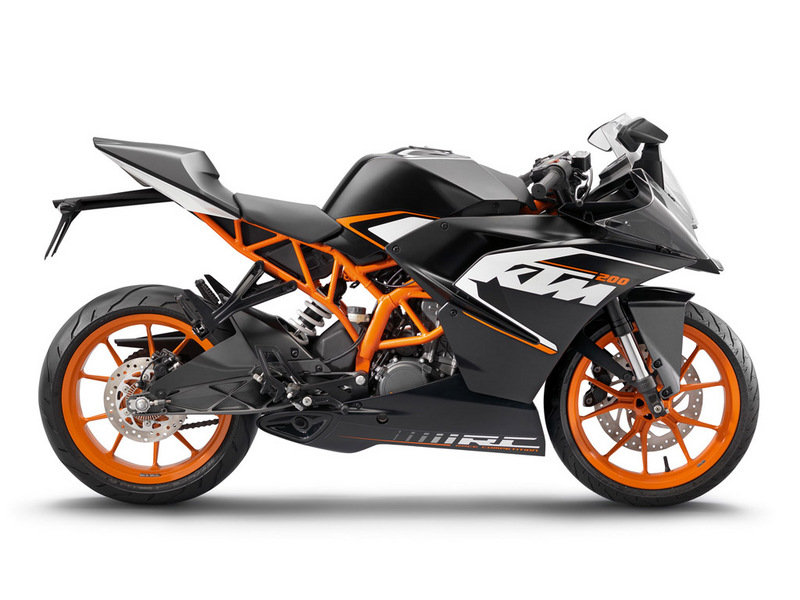

2014 KTM RC 200 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 KTM RC 200.

Basic Specs

Year2014
MakeKTM
ModelKTM RC 200
TypeSport
Cost

Engine

Displacement199.50 ccm (12.17 cubic inches)
TypeReed intake.
DetailsSingle cylinder, four-stroke
Max RPM
Compression14.5:1
Bore/Stroke72.0 x 49.0 mm (2.8 x 1.9 inches)
Valves/Cylinder
FuelingInjection
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Exhaust
LubricationForced oil lubrication with 1 rotor pump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchClutch in oil bath / mechanically operated
Driveline5/8  x  1/4  X Ring. Primary drive: 22:72.

Performance

Horespower25.48 HP (18.6 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity4.00 litres (1.06 gallons)
Emissions

Chassis

Frame TypeTubular space frame made from steel tubes, powder-coated
Rake23.5°
Trail
Front SuspensionWP  Suspension 4357
Front Travel125 mm (4.9 inches)
Rear SuspensionWP  Suspension  4618 EM
Rear Travel150 mm (5.9 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance179 mm (7.0 inches)
Wheelbase1,210 mm (47.6 inches)
Dry Weight137.5 kg (303.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre95/75-R17
Rear Tire/Tyre115/75-R17
Front BrakesSingle disc. Four-piston calipers.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Floating disc. Single-piston caliper.
Rear Brake Diameter230 mm (9.1 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM RC 200. This Sport model is powered by a Reed intake. Single cylinder, four-stroke engine with 199.50 ccm (12.17 cubic inches) of actual displacement before 14.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 25.48 HP (18.6 kW) horsepower and torque. According to our records engine heat of the KTM RC 200 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 95/75-R17 and the rear is 115/75-R17 . The entire package is supported by the frame, Tubular space frame made from steel tubes, powder-coated. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Four-piston calipers. front brakes and Single disc. Floating disc. Single-piston caliper. rear brakes. The KTM RC 200 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
