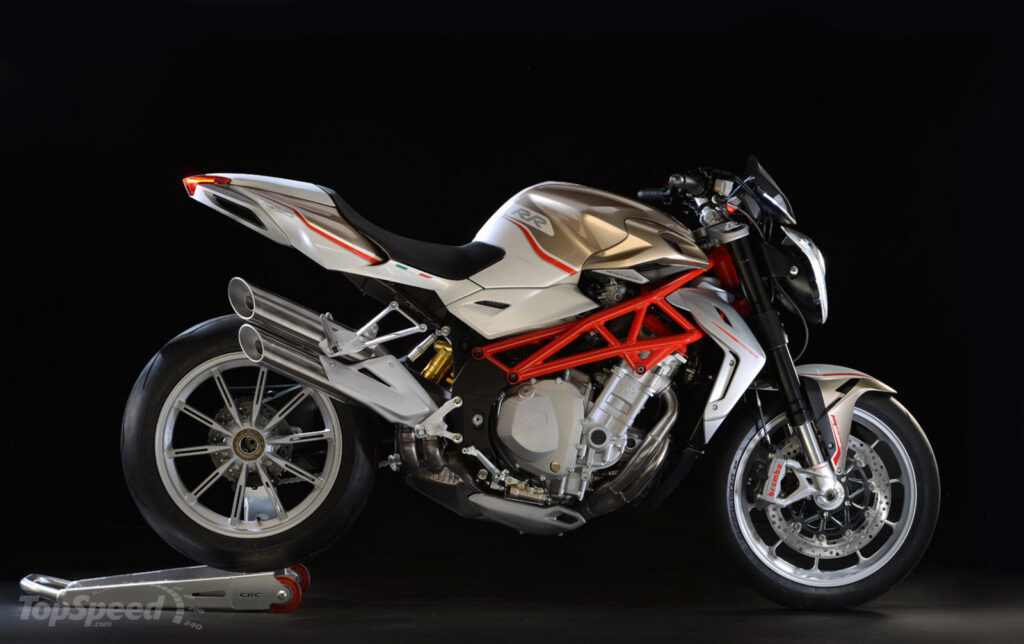

2014 MV Agusta Brutale 1090 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 MV Agusta Brutale 1090.

Basic Specs

Year2014
MakeMV Agusta
ModelMV Agusta Brutale 1090
Cost Euro 14000. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1078.00 ccm (65.78 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression13.1:1
Bore/Stroke79.0 x 55.0 mm (3.1 x 2.2 inches)
Valves/Cylinder4
FuelingInjection
IgnitionMagneti Marelli 5SM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; sequential timed “Multipoint” electronic injection
Exhaust
LubricationDouble rotor pump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multidisc
DrivelineConstant mesh

Performance

Horespower142.00 HP (103.6 kW)
Torque112.00 Nm (11.4 kgf-m or 82.6 ft.lbs)
Top Speed265.0 km/h (164.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions

Chassis

Frame TypeALS tubular steel trellis.
Rake
Trail104 mm (4.1 inches)
Front SuspensionMarzocchi “UPSIDE - DOWN” telescopic hydraulic fork with external and separated adjustment of rebound and compression damping and of spring preload.
Front Travel125 mm (4.9 inches)
Rear SuspensionProgressive, Sachs single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload adjustment
Rear Travel120 mm (4.7 inches)
Seat
Seat Height825 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,100 mm (82.7 inches)
Total Width775 mm (30.5 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,438 mm (56.6 inches)
Dry Weight183.0 kg (403.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Optional ABS. Floating disc. 4-piston caliper.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Optional ABS. 4-piston caliper
Rear Brake Diameter210 mm (8.3 inches)
WheelsAluminium alloy rims

Comments

It appears you're interested in specifications for the MV Agusta Brutale 1090. This Naked bike model is powered by a In-line four, four-stroke engine with 1078.00 ccm (65.78 cubic inches) of actual displacement before 13.1:1 compression. Fueling is metered via Injection allowing this machine to produce its 142.00 HP (103.6 kW) horsepower and 112.00 Nm (11.4 kgf-m or 82.6 ft.lbs) torque. According to our records engine heat of the MV Agusta Brutale 1090 is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, ALS tubular steel trellis. . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional ABS. Floating disc. 4-piston caliper. front brakes and Single disc. Optional ABS. 4-piston caliper rear brakes. The MV Agusta Brutale 1090 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
