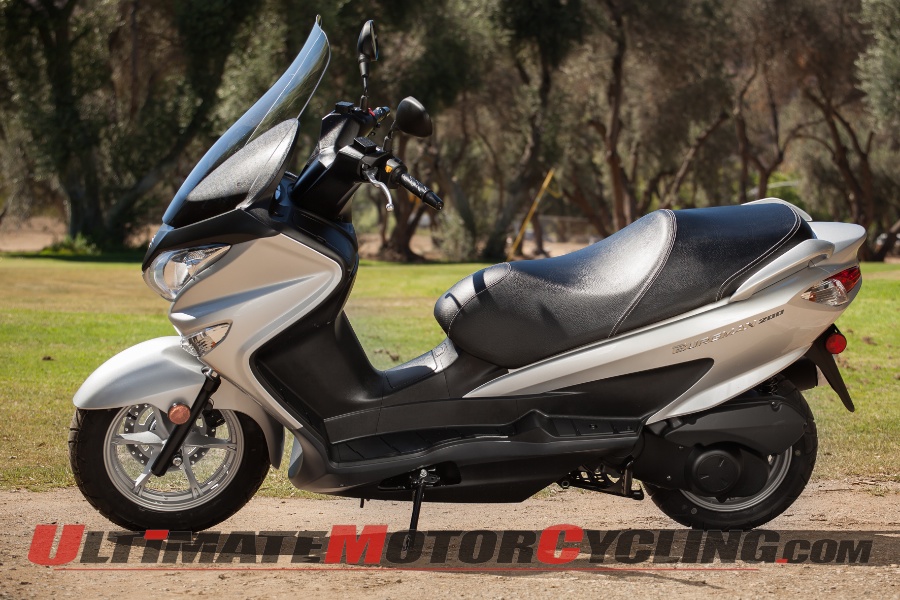

2014 Suzuki Burgman 200 ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Suzuki Burgman 200 ABS.

Basic Specs

Year2014
MakeSuzuki
ModelSuzuki Burgman 200 ABS
CostUS$ 4999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement200.00 ccm (12.20 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.6:1
Bore/Stroke69.0 x 53.4 mm (2.7 x 2.1 inches)
Valves/Cylinder
FuelingInjection
IgnitionCDI
Exhaust
LubricationWet Sump
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchDry shoe, automatic, centrifugal type
DrivelineV-belt

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity11.00 litres (2.91 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic, coil sprung, oil damped
Front Travel
Rear SuspensionSwingarm type, coilspring, oildamped
Rear Travel
Seat
Seat Height735 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,240 mm (48.8 inches)
Total Length2,055 mm (80.9 inches)
Total Width740 mm (29.1 inches)
Ground Clearance
Wheelbase1,465 mm (57.7 inches)
Dry Weight150.0 kg (330.7 pounds)
Wet Weight160.0 kg (352.7 pounds)

Wheels & Brakes

Front Tire/Tyre110/90-13
Rear Tire/Tyre130/70-12
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki Burgman 200 ABS. This Scooter model is powered by a Single cylinder, four-stroke engine with 200.00 ccm (12.20 cubic inches) of actual displacement before 11.6:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki Burgman 200 ABS is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 110/90-13 and the rear is 130/70-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Suzuki Burgman 200 ABS was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
