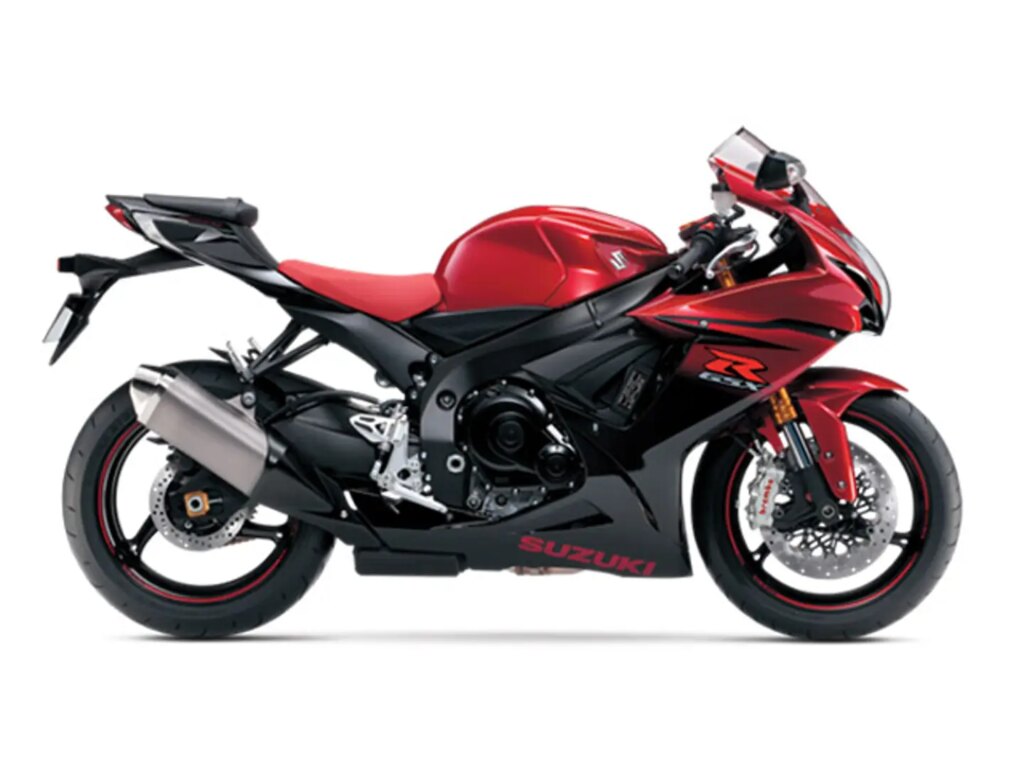

2014 Suzuki GSX-R750 50th Anniversary Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Suzuki GSX-R750 50th Anniversary.

Basic Specs

Year2014
MakeSuzuki
ModelSuzuki GSX-R750 50th Anniversary
TypeSport
CostUS$ 12499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement750.00 ccm (45.77 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke70.0 x 48.7 mm (2.8 x 1.9 inches)
Valves/Cylinder
FuelingInjection
IgnitionElectronic ignition (Transistorized)
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelineRK525ROZ5Y, 116 links, Chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame TypeTwin-spar aluminum cradle frame
Rake
Trail
Front SuspensionInverted Telescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,030 mm (79.9 inches)
Total Width710 mm (28.0 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,390 mm (54.7 inches)
Dry Weight
Wet Weight190.0 kg (418.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Brembo
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki GSX-R750 50th Anniversary. This Sport model is powered by a In-line four, four-stroke engine with 750.00 ccm (45.77 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki GSX-R750 50th Anniversary is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Twin-spar aluminum cradle frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo front brakes and Single disc rear brakes. The Suzuki GSX-R750 50th Anniversary was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Limited edtion
