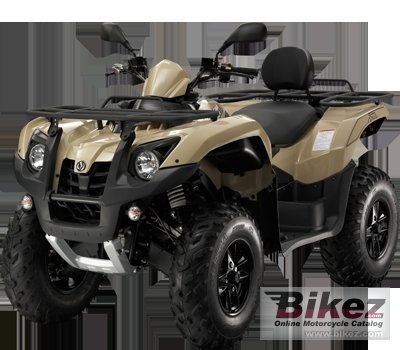

2014 Sym QuadRaider 600LE Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Sym QuadRaider 600LE.

Basic Specs

Year2014
MakeSym
ModelSym QuadRaider 600LE
TypeATV
Cost

Engine

Displacement565.00 ccm (34.48 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
FuelingCarburettor. C.V.K.
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
Clutch
Driveline

Performance

Horespower21.46 HP (15.7 kW)
Torque35.30 Nm (3.6 kgf-m or 26.0 ft.lbs)
Top Speed80.0 km/h (49.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypePipe under bone
Rake
Trail
Front SuspensionIndependent double arm
Front Travel
Rear SuspensionIndependent double arm
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,220 mm (48.0 inches)
Total Length2,110 mm (83.1 inches)
Total Width1,150 mm (45.3 inches)
Ground Clearance
Wheelbase1,570 mm (61.8 inches)
Dry Weight348.0 kg (767.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter180 mm (7.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Sym QuadRaider 600LE. This ATV model is powered by a Single cylinder, four-stroke engine with 565.00 ccm (34.48 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. C.V.K. allowing this machine to produce its 21.46 HP (15.7 kW) horsepower and 35.30 Nm (3.6 kgf-m or 26.0 ft.lbs) torque. According to our records engine heat of the Sym QuadRaider 600LE is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 25/8-12 and the rear is 25/10-12 . The entire package is supported by the frame, Pipe under bone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Sym QuadRaider 600LE was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Made in Taiwan.
