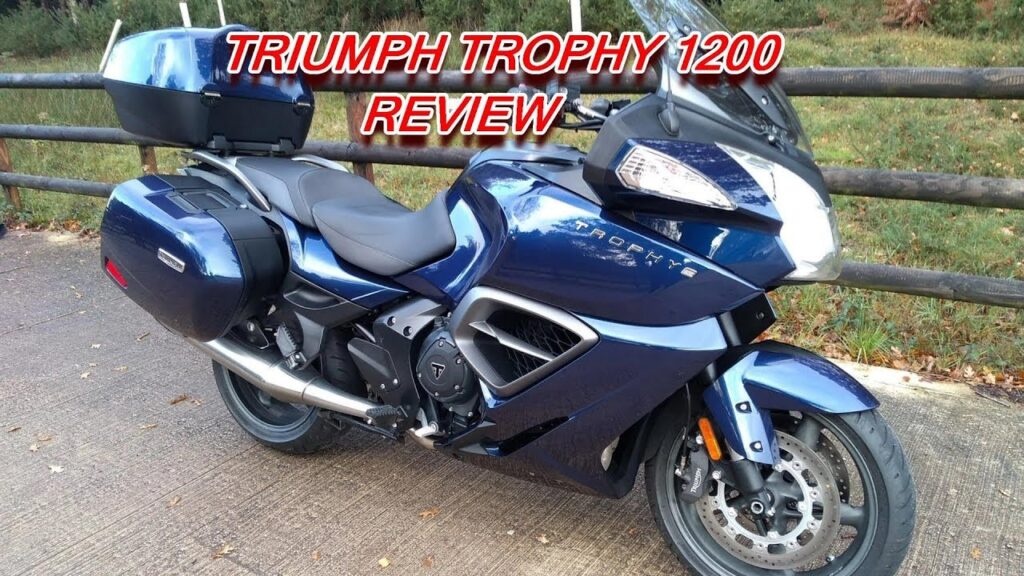

These are the known mechanical and performance specifications for your 2014 Triumph Trophy.
Basic Specs
Engine
Displacement1215.00 ccm (74.14 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression
Bore/Stroke85.0 x 71.4 mm (3.3 x 2.8 inches)
Valves/Cylinder
FuelingInjection. Ride by wire. fuel injection
Ignition
ExhaustStainless steel 3 into 1. side mounted stainless steel silencer
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchWet. multi-plate
DrivelineConstant Mesh
Performance
Horespower134.00 HP (97.8 kW)
Torque120.00 Nm (12.2 kgf-m or 88.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity26.00 litres (6.87 gallons)
Emissions
Chassis
Frame TypeAluminium beam twin-spar. Single-sided, cast aluminium alloy swing arm.
Rake27.0°
Trail119 mm (4.7 inches)
Front SuspensionWP 43mm upside down forks, electronically adjustable rebound damping (sport/normal/comfort) with 127mm travel.
Front Travel
Rear SuspensionWP monoshock with integral oil reservoir, electronically adjustable hydraulic preload (1up, 1up+luggage, 2up), electronically adjustable rebound damping (sport, normal, comfort), 120mm rear wheel travel.
Rear Travel
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,435 mm (56.5 inches)
Total Length2,235 mm (88.0 inches)
Total Width975 mm (38.4 inches)
Ground Clearance
Wheelbase1,542 mm (60.7 inches)
Dry Weight
Wet Weight301.0 kg (663.6 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre190/55-17
Front BrakesDouble disc. Floating discs, Nissin 4-piston calipers, ABS (non-switchable)
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Nissin 2-piston sliding caliper, ABS (non-switchable)
Rear Brake Diameter282 mm (11.1 inches)
WheelsCast aluminium 5-spoke
