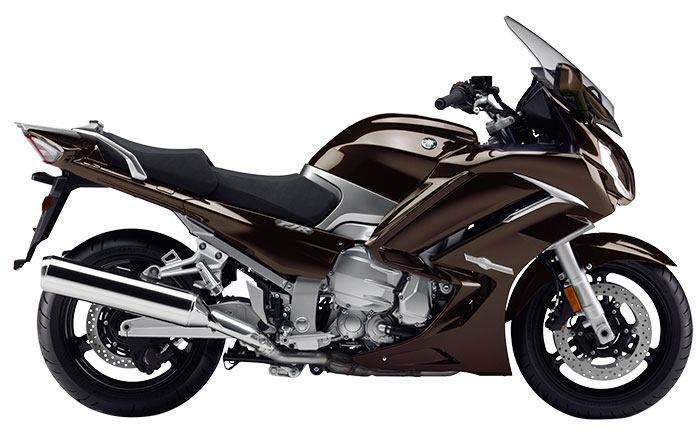

These are the known mechanical and performance specifications for your 2014 Yamaha FJR1300AS.
Basic Specs
Engine
Displacement1298.00 ccm (79.20 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke79.0 x 66.2 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCI: Transistor Controlled Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
DrivelineConstant mesh
Performance
Horespower107.50 HP (78.5 kW)
Torque138.00 Nm (14.1 kgf-m or 101.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.53 litres/100 km (15.3 km/l or 36.02 mpg)
Fuel Capacity25.00 litres (6.61 gallons)
Emissions151.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeAluminium, Diamond Shaped
Rake26.0°
Trail109 mm (4.3 inches)
Front SuspensionUpside-down telescopic fork, Ø 48 mm tube, adjustable preload, compression and rebound damping
Front Travel135 mm (5.3 inches)
Rear SuspensionLinked monoshock with spring preload adjustment
Rear Travel125 mm (4.9 inches)
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height825 mm (32.5 inches) If adjustable, highest setting.
Total Height1,326 mm (52.2 inches)
Total Length2,230 mm (87.8 inches)
Total Width749 mm (29.5 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,544 mm (60.8 inches)
Dry Weight
Wet Weight292.0 kg (643.7 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Hydraulic
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter282 mm (11.1 inches)
Wheels
Comments
Electronically-adjustable suspension. Traction control and cruise control systems. Windshield.
