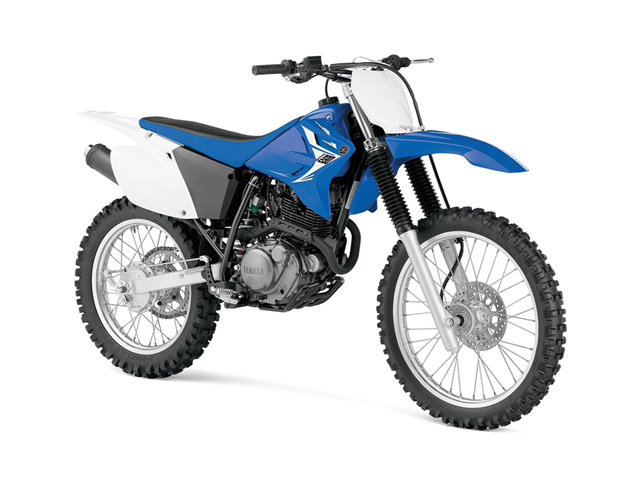

These are the known mechanical and performance specifications for your 2014 Yamaha TT-R230.
Basic Specs
Year2014
MakeYamaha
ModelYamaha TT-R230
TypeEnduro / offroad
CostUS$ 3990. Prices depend on country, taxes, accessories, etc.
Engine
Displacement223.00 ccm (13.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke70.0 x 58.0 mm (2.8 x 2.3 inches)
Valves/Cylinder2
FuelingCarburettor
IgnitionCDI
ExhaustLightweight exhaust with quiet muffler and USFS-approved spark arrestor.
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchMultiplate wet clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.95 litres (2.10 gallons)
Emissions
Chassis
Frame TypeSteel, diamond-type-design
Rake
Trail
Front SuspensionTelescopic fork
Front Travel239 mm (9.4 inches)
Rear SuspensionSingle shock
Rear Travel221 mm (8.7 inches)
Seat
Seat Height871 mm (34.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,181 mm (46.5 inches)
Total Length2,065 mm (81.3 inches)
Total Width800 mm (31.5 inches)
Ground Clearance295 mm (11.6 inches)
Wheelbase1,384 mm (54.5 inches)
Dry Weight
Wet Weight113.9 kg (251.0 pounds)
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre100/100-18
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels
Comments
