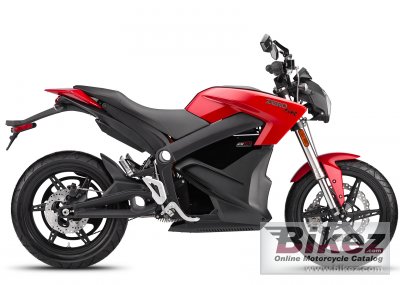

2014 Zero SR ZF 11.4 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Zero SR ZF 11.4.

Basic Specs

Year2014
MakeZero
ModelZero SR ZF 11.4
TypeSport
CostUS$ 16995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement
TypeRadial flux, permanent high-temp magnet, brushless motor
DetailsElectric
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox
Final DriveBelt
ClutchClutchless direct drive
Driveline132T / 28T, Poly Chain® GT® Carbon™ belt

Performance

Horespower67.00 HP (48.9 kW)
Torque144.00 Nm (14.7 kgf-m or 106.2 ft.lbs)
Top Speed164.0 km/h (101.9 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame Type
Rake24.0°
Trail81 mm (3.2 inches)
Front Suspension43 mm inverted, aluminum slider forks with adjustable compression and rebound damping
Front Travel
Rear SuspensionPiggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Rear Travel
Seat
Seat Height808 mm (31.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,410 mm (55.5 inches)
Dry Weight
Wet Weight162.0 kg (357.1 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre140/70-17
Front BrakesSingle disc. Floating discs. Two-piston calipers.
Front Brake Diameter313 mm (12.3 inches)
Rear BrakesSingle disc. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Zero SR ZF 11.4. This Sport model is powered by a Radial flux, permanent high-temp magnet, brushless motor Electric engine with of actual displacement before compression. Fueling is metered via allowing this machine to produce its 67.00 HP (48.9 kW) horsepower and 144.00 Nm (14.7 kgf-m or 106.2 ft.lbs) torque. According to our records engine heat of the Zero SR ZF 11.4 is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 140/70-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Floating discs. Two-piston calipers. front brakes and Single disc. Single-piston caliper. rear brakes. The Zero SR ZF 11.4 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Range up to 137 miles. 7.9 hour charging. Lithium Ion 11.4 kWh battery.
