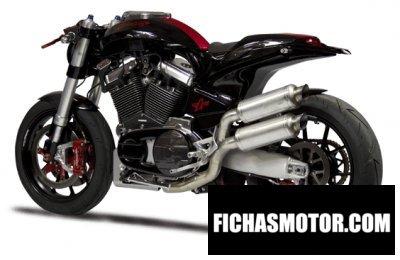

2015 Avinton Collector Race Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Avinton Collector Race.

Basic Specs

Year2015
MakeAvinton
ModelAvinton Collector Race
Cost

Engine

Displacement1647.00 ccm (100.50 cubic inches)
TypeS and S V-Twin at 45 degree
DetailsV2, four-stroke
Max RPM
Compression10.3:1
Bore/Stroke101.6 x 101.0 mm (4.0 x 4.0 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin FCR 46mm/diam. carburator with flat valve; air intake butterflies managed electronically
IgnitionCDI single fire reprogrammable
Exhaust2 in 1 stainless steel or carbon
LubricationDry sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
DrivelineKevlar belt primary

Performance

Horespower120.00 HP (87.6 kW)
Torque168.00 Nm (17.1 kgf-m or 123.9 ft.lbs)
Top Speed262.0 km/h (162.8 mph)

Fuel Economy & Polution

Fuel Consumption5.40 litres/100 km (18.5 km/l or 43.56 mpg)
Fuel Capacity13.00 litres (3.43 gallons)
Emissions125.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular with suspended engine, oil circuit integrated in the frame
Rake22.0°
Trail85 mm (3.3 inches)
Front Suspension46mm adjustable Ceriani fork
Front Travel
Rear SuspensionSachs shocks
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,380 mm (54.3 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight195.0 kg (429.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre155/80-17
Front BrakesSingle disc
Front Brake Diameter335 mm (13.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Avinton Collector Race. This Naked bike model is powered by a S and S V-Twin at 45 degree V2, four-stroke engine with 1647.00 ccm (100.50 cubic inches) of actual displacement before 10.3:1 compression. Fueling is metered via Carburettor. Keihin FCR 46mm/diam. carburator with flat valve; air intake butterflies managed electronically allowing this machine to produce its 120.00 HP (87.6 kW) horsepower and 168.00 Nm (17.1 kgf-m or 123.9 ft.lbs) torque. According to our records engine heat of the Avinton Collector Race is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 155/80-17 . The entire package is supported by the frame, Tubular with suspended engine, oil circuit integrated in the frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Avinton Collector Race was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

French made bike
