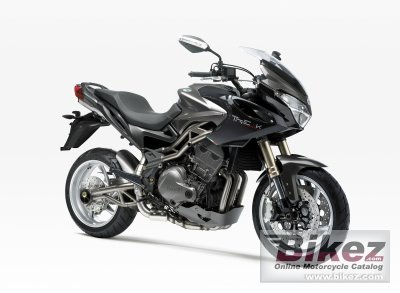

2015 Benelli Tre K 1130 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Benelli Tre K 1130.

Basic Specs

Year2015
MakeBenelli
ModelBenelli Tre K 1130
Cost

Engine

Displacement1131.00 ccm (69.01 cubic inches)
TypeAnti-vibration countershaft
DetailsIn-line three, four-stroke
Max RPM
Compression11.6:1
Bore/Stroke88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Three throttle bodies ø53 mm
IgnitionSingle coil inductive discharge electronic ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multiplate
Driveline

Performance

Horespower125.00 HP (91.2 kW)
Torque112.00 Nm (11.4 kgf-m or 82.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity22.00 litres (5.81 gallons)
Emissions

Chassis

Frame TypeDecomposable, front steel trestle, rear aluminum alloy casting
Rake25.0°
Trail102 mm (4.0 inches)
Front SuspensionØ50 mm upside-down fork, with hydraulic rebound / compression and spring preload adjustments
Front Travel150 mm (5.9 inches)
Rear SuspensionSteel trestle swingarm, progressive rear dumper with hydraulic extension and spring preload adjustments
Rear Travel144 mm (5.7 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,050 mm (41.3 inches)
Total Length2,100 mm (82.7 inches)
Total Width790 mm (31.1 inches)
Ground Clearance
Wheelbase1,419 mm (55.9 inches)
Dry Weight215.0 kg (474.0 pounds)
Wet Weight240.0 kg (529.1 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc. 4-piston caliper
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-piston caliper
Rear Brake Diameter240 mm (9.4 inches)
WheelsAluminum alloy

Comments

It appears you're interested in specifications for the Benelli Tre K 1130. This Sport touring model is powered by a Anti-vibration countershaft In-line three, four-stroke engine with 1131.00 ccm (69.01 cubic inches) of actual displacement before 11.6:1 compression. Fueling is metered via Injection. Three throttle bodies ø53 mm allowing this machine to produce its 125.00 HP (91.2 kW) horsepower and 112.00 Nm (11.4 kgf-m or 82.6 ft.lbs) torque. According to our records engine heat of the Benelli Tre K 1130 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, Decomposable, front steel trestle, rear aluminum alloy casting. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston caliper front brakes and Single disc. 2-piston caliper rear brakes. The Benelli Tre K 1130 was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
