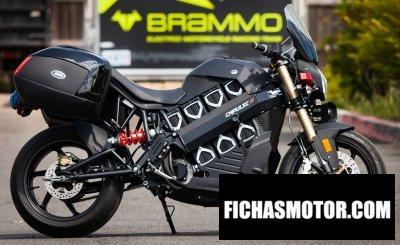

2015 Brammo Empulse LE Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Brammo Empulse LE.

Basic Specs

Year2015
MakeBrammo
ModelBrammo Empulse LE
Cost

Engine

Displacement
TypeParker GVM IPM Motor
DetailsElectric
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchIET 6 speed gearbox with multi-plate, hydraulic activated wet clutch
Driveline520 O-ring chain

Performance

Horespower54.00 HP (39.4 kW)
Torque90.00 Nm (9.2 kgf-m or 66.4 ft.lbs)
Top Speed169.0 km/h (105.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeLightweight extruded and welded aluminum - serves a battery tray (patent pending)
Rake24.0°
Trail97 mm (3.8 inches)
Front SuspensionFully Adjustable 43mm Marzocchi Forks
Front Travel
Rear SuspensionFully Adjustable Sachs Shock
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,067 mm (42.0 inches)
Total Length2,057 mm (81.0 inches)
Total Width
Ground Clearance185 mm (7.3 inches)
Wheelbase
Dry Weight213.0 kg (469.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Bremo
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Bremo
Rear Brake Diameter220 mm (8.7 inches)
WheelsCast Aluminum

Comments

It appears you're interested in specifications for the Brammo Empulse LE. This Naked bike model is powered by a Parker GVM IPM Motor Electric engine with of actual displacement before compression. Fueling is metered via allowing this machine to produce its 54.00 HP (39.4 kW) horsepower and 90.00 Nm (9.2 kgf-m or 66.4 ft.lbs) torque. According to our records engine heat of the Brammo Empulse LE is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Lightweight extruded and welded aluminum - serves a battery tray (patent pending). We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Bremo front brakes and Single disc. Bremo rear brakes. The Brammo Empulse LE was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Brammo Power™ BPM15/90 Lithium-Ion ( NCM Chemistry), 103.6 Volt. Recharge time approximately 8 hours. Range: 125 km. Under deceleration, energy is returned to the battery system to both extend driving range and provide familiar rider feedback.
