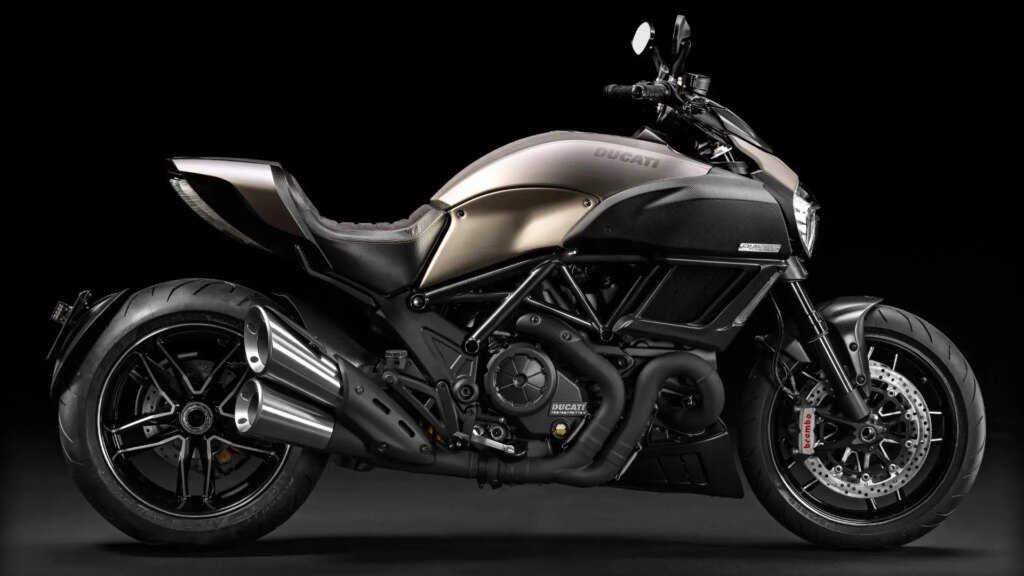

2015 Ducati Diavel Titanium Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Ducati Diavel Titanium.

Basic Specs

Year2015
MakeDucati
ModelDucati Diavel Titanium
Cost

Engine

Displacement1198.40 ccm (73.13 cubic inches)
TypeTestastretta 11° L-Twin
DetailsV2, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke106.0 x 67.9 mm (4.2 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Ignition
ExhaustStainless steel muffler with aluminium tips and brushed steel cover; catalyzer and 2 lambda probes. Zircotech ceramic coated exhaust tubes.
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
DrivelineFront sprocket 15; Rear sprocket 43. Primary drive: Straight cut gears, ratio 1.84.

Performance

Horespower162.00 HP (118.2 kW)
Torque130.50 Nm (13.3 kgf-m or 96.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeSteel tube Trellis with Dark Chrome finish
Rake28.0°
Trail130 mm (5.1 inches)
Front SuspensionMarzocchi DLC coated 50mm fully adjustable usd forks
Front Travel120 mm (4.7 inches)
Rear SuspensionProgressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear Travel120 mm (4.7 inches)
SeatDual seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,192 mm (46.9 inches)
Total Length2,235 mm (88.0 inches)
Total Width860 mm (33.9 inches)
Ground Clearance
Wheelbase1,590 mm (62.6 inches)
Dry Weight205.0 kg (451.9 pounds)
Wet Weight234.0 kg (515.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre240/45-ZR17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Two-piston calipers.
Rear Brake Diameter265 mm (10.4 inches)
WheelsLightweight forged alloy with machined finish

Comments

It appears you're interested in specifications for the Ducati Diavel Titanium. This Naked bike model is powered by a Testastretta 11° L-Twin V2, four-stroke engine with 1198.40 ccm (73.13 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW allowing this machine to produce its 162.00 HP (118.2 kW) horsepower and 130.50 Nm (13.3 kgf-m or 96.3 ft.lbs) torque. According to our records engine heat of the Ducati Diavel Titanium is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 240/45-ZR17 . The entire package is supported by the frame, Steel tube Trellis with Dark Chrome finish. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. front brakes and Single disc. ABS. Floating disc. Two-piston calipers. rear brakes. The Ducati Diavel Titanium was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
