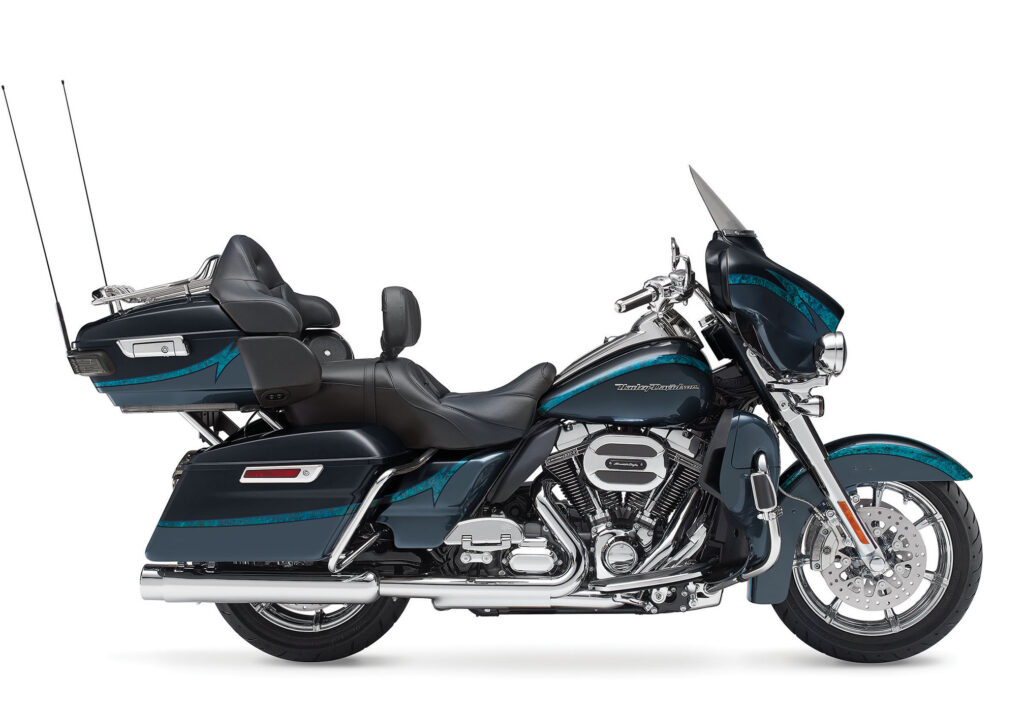

These are the known mechanical and performance specifications for your 2015 Harley-Davidson CVO Limited.
Basic Specs
Year2015
MakeHarley-Davidson
ModelHarley-Davidson CVO Limited
TypeTouring
CostUS$ 39349. Euro 40485. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1801.00 ccm (109.90 cubic inches)
TypeTwin-Cooled™ Twin Cam 110™
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.1 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome dual exhaust with 4 in. touring mufflers and touring muffler shields
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower96.55 HP (70.5 kW)
Torque156.00 Nm (15.9 kgf-m or 115.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,504 mm (98.6 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight412.0 kg (908.3 pounds)
Wet Weight428.0 kg (943.6 pounds)
Wheels & Brakes
Front Tire/Tyre130/80-17
Rear Tire/Tyre180/65-16
Front BrakesDouble disc. ABS, 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS, 2-piston
Rear Brake Diameter
WheelsMirror Chrome Chisel Custom Wheels
Comments
Windshield. Cruise control. Alarm.
