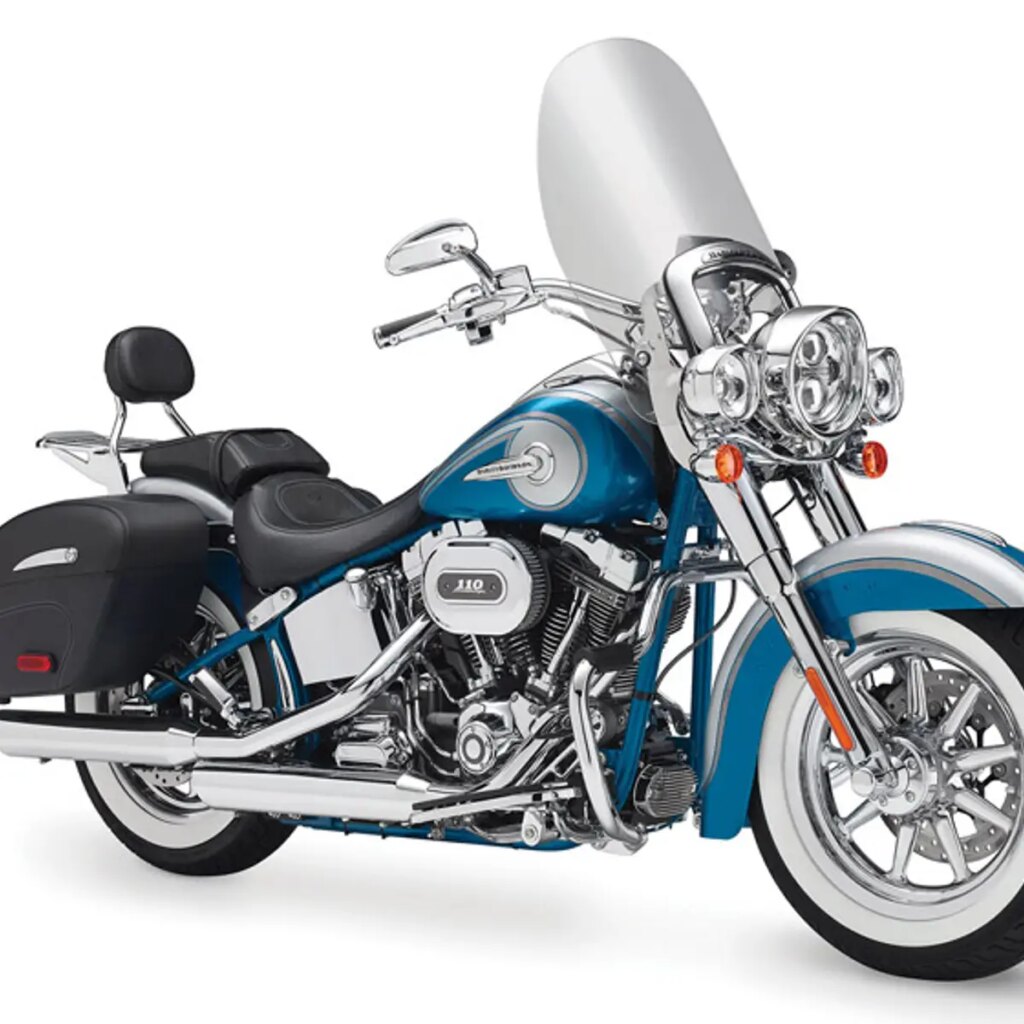

2015 Harley-Davidson CVO Softail Deluxe Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Harley-Davidson CVO Softail Deluxe.

Basic Specs

Year2015
MakeHarley-Davidson
ModelHarley-Davidson CVO Softail Deluxe
CostUS$ 28999. Euro 30479. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1801.00 ccm (109.90 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.1 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, shorty-dual exhaust w/ slashdown chrome mufflers and chrome heat shields
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio

Performance

Horespower
Torque146.00 Nm (14.9 kgf-m or 107.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake32.1°
Trail147 mm (5.8 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height655 mm (25.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,430 mm (95.7 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,630 mm (64.2 inches)
Dry Weight
Wet Weight354.7 kg (782.0 pounds)

Wheels & Brakes

Front Tire/TyreMT90-B16
Rear Tire/TyreMU85-B16
Front BrakesSingle disc. ABS, 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS, 2-piston
Rear Brake Diameter
WheelsChrome, 9-Spoke Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson CVO Softail Deluxe. This Custom / cruiser model is powered by a V2, four-stroke engine with 1801.00 ccm (109.90 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 146.00 Nm (14.9 kgf-m or 107.7 ft.lbs) torque. According to our records engine heat of the Harley-Davidson CVO Softail Deluxe is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MT90-B16 and the rear is MU85-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS, 4-piston front brakes and Single disc. ABS, 2-piston rear brakes. The Harley-Davidson CVO Softail Deluxe was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windshield, Cruise control, Alarm
